- 产品描述
-

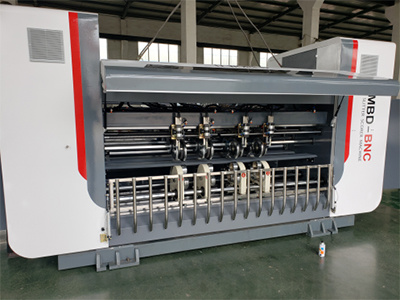

Product overview
As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise. Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.
Function and Characteristic
● High quality touch screen and PLC equipped composing the CNC system,connect to the production line.
● High quality beeline rail and high-precision screw conveying guarantees the precision.
● A memory of orders,realize non-stop automatic or manual change.
● Speed synchronizes with board speed.Standard communication interface,easy to link with management system.
● Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening.
● The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.
● Three types of scorers:convex to concave(three lines).convex to concave(five lines),convex to flat.

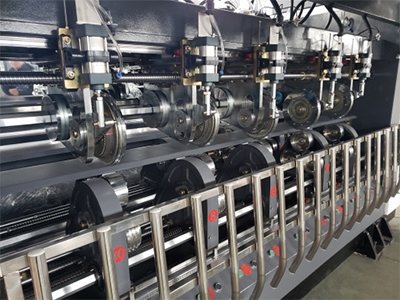

● Two rows of scorers,realizes minimum scorer spacing is 0mm.
● Computer control score-depth,high quality scorer,more steady.
● Using the synchronous belt transmission ,low noise,prolong using time.
● Standard motorized body left-right rectification system 200mm.
Technical Specifications
Width 1600mm Speed 250m/min Blade&scorer 5&8 Order change 1-4s(servo type)
3-8s(invert type)precision ±0.5mm Min.slitting 135mm Min.scorer 0mm Correction range 200mm Power 25kw Machine size 3900*1800*2450 (mm) Show Details

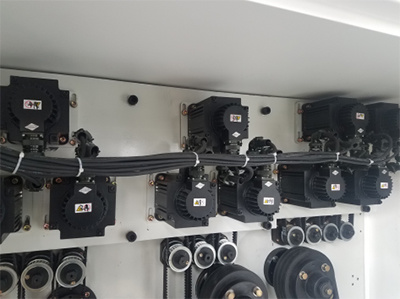

● Slitter and scorer independent moto control ,realize fast change.
● Change order within 1-4s(servo type)3-8s(invert type).precise(±0.5mm).● Two rows of scorers,realizes minimum scorer spacing is 0mm.Three type of scorers,convex to concave (three lines),convex to concave(five lines),convex to flat.
● Precised gapless synchronous transmission belt,precious encoder monitoring.

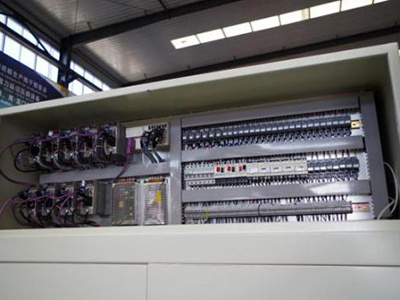

● Famous brand in the world electric elements.Application of two machine together can also realize non-stop order change.
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
