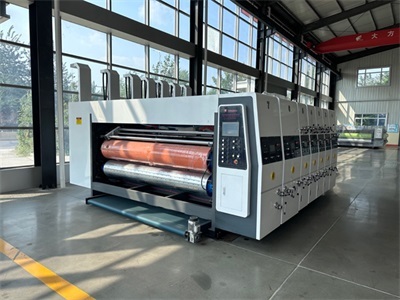

Product Introduction
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-B DESCRIPTION TB-B Automatic Printing Slotter Die cutting Stacker Machine LEAD EDGE FEEDER UNIT
● “Komori Seiko” high precision Lead edge feeder system
● Four-row wheel design makes paper feeding more stable
● Dual paper feed shaft
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle1 Unit

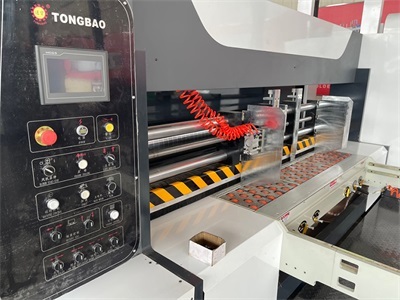

PRINTING UNIT/COLOR
● 200LPI-300LPI（Metal Anilox Roller）, can be customized by details requirements
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Motor controller(Touch Screen) Adjustment machine phase1 Unit
SLOTTING UNIT
● Computerized adjustable grooving knife and box height. Manually adjust pressure, store orders, and change orders with one click
● 6-axis heavy-duty structure, (Pre-creasing line)-(Creasing line)-(Slotting)
● Pre-creaser shaft core diameter 120mm
● Creaser shaft core diameter 110mm
● Slotter shaft core diameter1 Unit

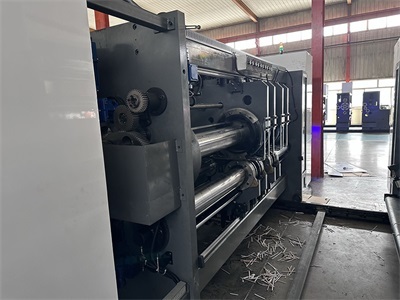

DIE CUTTING UNIT
● The die-cutting roller can move left and right and is electrically adjusted
● Differential compensation device
● Motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt1 Unit

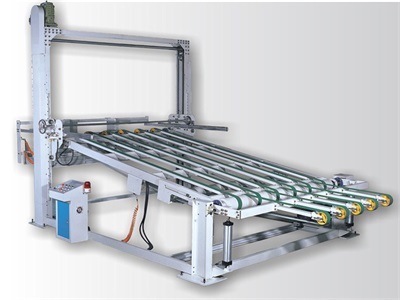

STACKER 1 Unit
Machine Main Parameter
Model TB-B920 TB-B924 TB-B1224 TB-B1226 TB-B1228 TB-B1426 TB-B1628 Inside width of machine 2200mm 2600mm 2600mm 2800mm 3000mm 2800mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2600mm 1200x2800mm 1450x2600mm 1600x2800mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2400mm 1200x2600mm 1450x2400mm 1600x2600mm Minimum paper size 300x600mm 300x600mm 350x700mm 350x700mm 350x700mm 430x700mm 500x700mm Design speed of machine 230pcs/min 230pcs/min 200pcs/min 200pcs/min 200pcs/min 180pcs/min 150pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 12mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm 405mm 480mm 530mm Standard printing thickness 2-12mm Printing registration precision ≤±0.5mm Die-cutting precision ≤±1mm The thickness of wall 60mm Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN) Material of main gear 20CrMnTi Anvil cover Maxdure(TAIWAN) Lead Edge Feeder Unit
ROLLER TRANSFER
● Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
● Anilox roller and rubber roller structure.
● Anilox roller external diameter is ¢212 mm, steel pipe is plated with ceramic grinded surface and laser-carved anilox
● Printing pressing roller external diameter is ¢188mm,Steel pipe is plated with rigid chrome and grinded surface.
● Ratchet wheel fixed plate axle.
● Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch.
● Printing plate roller traverse PLC control adjustment, movement range +/-10mm
● Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
● Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
● Automatic reposition after washing the printing template during the printing procession.
● Automatic ink washing system.
● It is made of quality steel with professional workmanship through strict dynamic/static balance tests, and then precisely milled; its surface is caved longitudinal/lateral lines to facilitate plate mounting
● Its surface is plated with chrome for long durability
● The roller correcting device can quickly and conveniently correct the inclined printing when the plate is hungSlotting Unit
● Creasing wheel with PU Plated for good creasing and avoiding paper crack
● Creasing rollers diameter:110mm,plated with rigid chrome and grinded surface,treated by balance rectification.
● Slotting holder rollers diameter:176mm,plated with rigid chrome and grinded surface,treated by balance rectification.
● Cast steel slotting guide plates makes slotting precise and never damage the slotting knife.
● Crsi Slotting knives
● When the collision protector is raised and lowered laterally at the box height setting position or the slotted boss, an anti-collision protector should be installed to prevent it from being damaged.
● Slotting holder rollers gap adjusted by electric control
● The pressure shafts is synchronized with the slotting knife to ensure the consistency of the slotting pressure line
● Large diameter pre creaser axis,tight and strongDie-Cutting Unit
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● The gap between the rubber pad roller and the die roller is controlled electrically, the paper feeding stops, the soft roller rises automatically, and returns to the working position when working.
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.
● The worn rubber pad roller can be repaired to keep the surface of the rubber pad flat.
● With waste conveyor belt, it can effectively transfer the waste paper generated by slotting and die cutting outside the machine
● With the air duct blowing chips, the brush removes chips, effectively stripping the waste paper generated by die cuttingStacker
● Lift up and down, safe and easy operation
Machine Main Parts
NO. Name Picture Brand 1 Anilox roller
HAILI(CHINA) 2 Rubber roller
JIZHOU(CHINA) 3 Printing roller
HAILI(CHINA) 4 Lead edge feeder
Komori Seiko 5 Gear
CHENGDU 6 Wallboard
TONGBAO 7 Bearing
NSK(JAPAN)NSK 8 Solenoid valve
AirTac(TAIWAN) 9 Electrical switch
Schneider(FRANCE) 10 Main motor
SHANGHAI 11 Display screen
MCGS 12 Encoder
Feibo(BEIJING) 13 Inverter
PUCHUAN 14 PLC
DELTA(TAIWAN) 15 Electrical component
Schneider(FRANCE) 16 Air pump
Tianao(ZHEJIANG) 17 Anvil cover
Maxdure(TAIWAN)
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
