- 产品描述
-
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-ST DESCRIPTION TB-ST Full Automatic Vacuum transfer servo feeder Printer Slotter Die cutter(Servo motor independent drive) Machine SERVO LEAD EDGE FEEDER UNIT
● 4 “Germany Bosch Rexroth Servo Motor Drive Pressure-FRESS Lead edge feeder system
● The height of the box can be extended indefinitely, The servo pressure free system has zero damage and zero pressure on the cardboard
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle
● Electric move the paper tray
● Siemens (Germany) automatic control system(PLC/ /touch screen)
● Inverter DELTA(Taiwan)
● Input box parameter on Main Touch Screen, One-Click change order can be realized
● Industrial control imaging TV monitoring(23.5-inch color display on counter unit+machine-back side imaging display monitor on die cutting unit + lead edge feeder unit + counter unit)1 Unit

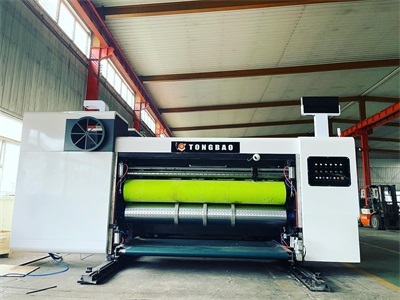

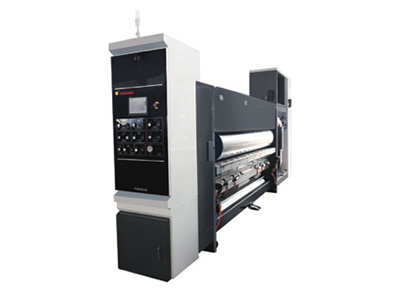

PRINTING UNIT/COLOR
● Vacuum transfer
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Servo controller(Touch Screen) Adjustment machine phase
● Frequency (Touch Screen) Adjustment bellows lift
● Frequency conversion control adsorption air volume
● The air gate automatic adjustment device automatically adjusts the suction area according to the size of the cardboard.

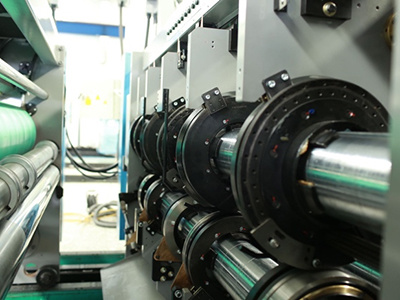

SLOTTING UNIT
● Computerized Synchronous moving slotting & creasing & Pre-creasing, Auto adjust by Touch Screen with memory for setting carton size
● 8 Axis heavy Design,(Pre-creaser)- (Pre-creaser)- (Creaser)- (slotter)
● Pre-creaser shaft core diameter 120mm (solid shaft)
● Creaser shaft core diameter 120mm (solid shaft)
● creaser shaft core diameter 120mm (solid shaft)
● Slotter shaft core diameter 110mm (Seamless steel pipe)
● Slotting left and right traverse speed: 100mm/12seconds
● Servo Controller (Touch Screen) Adjust Machine phase
● Frequency (Touch Screen) Adjust roller gap1 Unit

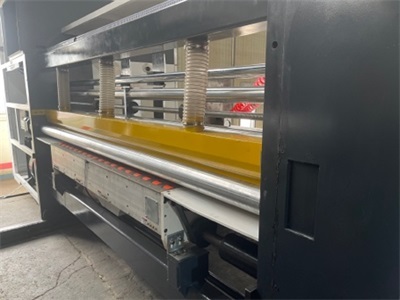

SERVO DIE CUTTING UNIT
● Servo Drive rotary die cutting system
● Differential compensation device
● Servo motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt1 Unit

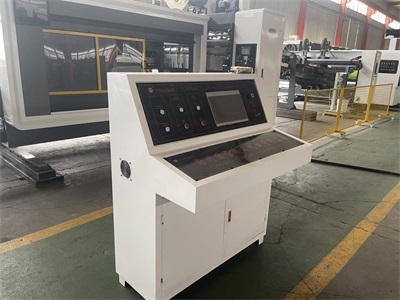

INDEPENDENT CONTROL CABINET
● Can be connected to the factory production management system
● Enter box parameters to realize one key order adjustment of the whole machine, store 10,000 orders, and quickly change orders1 Unit
Machine Main Parameter
Model TB-ST920 TB-ST924 TB-ST1224 TB-ST1228 TB-ST1428 Inside width of machine 2200mm 2600mm 2600mm 3000mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2800mm 1450x2800mm Skip feeding size ∞x2000mm ∞x2400mm ∞x2400mm ∞x2800mm ∞x2800mm Minimum paper size 300x680mm 300x680mm 350x680mm 350x680mm 430x680mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2600mm 1450x2600mm Design speed of machine 300pcs/min 300pcs/min 250pcs/min 250pcs/min 200pcs/min Economic speed of machine 0-280pcs/min 0-280pcs/min 0-230pcs/min 0-230pcs/min 0-180pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 13mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm 480mm Standard printing thickness 1.5-12mm Printing registration precision ≤±0.5mm Die-cutting precision ≤±1mm The thickness of wall 60mm PLC/Touch screen SIEMENS (GERMANY) Inverter DELTA（TAIWAN） Servo motor for Lead edge feeder unit Rexroth(GERMANY) Servo motor for die cutting unit VEICHI(TAIWAN) Servo controller for printing unit phase DELTA（TAIWAN） Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN) Material of main gear 20CrMnTi Anvil cover Maxdure(TAIWAN) Function Of Feeding(Servo Motor Drive)
SERVO MOTOR DRIVE (ZERO PRESSURE)
● Adopt negative pressure suction flat sun feeding device, suit for any type flute board and any direction feeding, and ensure feeding accuracy.
● Feeding gap accurate adjustment, never damaged strength of the corrugate board
● Adopt pneumatic locking, with protection for overdrive, safe for operation.
● The roller wheel type lead edge feeding vacuum feeding system ensure warped paperboard feeds accurately, skip feeding for large paperboard printing requirement. Automatic return to zero position. Motorized adjustment of feeding roll gap . Continue feeding and skip feeding functionFunction Of Printing Department

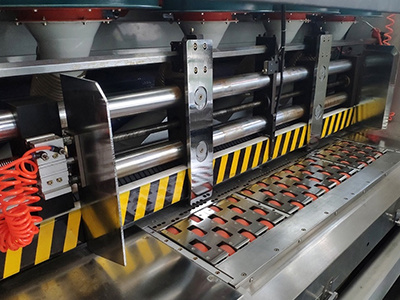

Vacuum transfer
● The vacuum transfer adopted for the whole process feeding is able to feed the cardboard smoothly and precisely which improve the printing precise.
● The gap between vacuum cabinet and printing roller adjusted by PLC and touch screen
● Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
● Anilox roller external diameter is ¢212 mm, steel pipe is plated with grinded surface and laser-carved anilox
● Printing roller diameter: 405mm(including 7.2mm printing plate with liner)
● Printing pressing roller external diameter is ¢188mm,Steel pipe is plated with rigid chrome and grinded surface.
● Ratchet wheel fixed plate axle.
● Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch.
● Printing plate roller traverse PLC control adjustment, movement range +/-5mm
● Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
● Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
● Automatic reposition after washing the printing template during the printing procession.
● Automatic ink washing system.Slotting( Full Computerized)

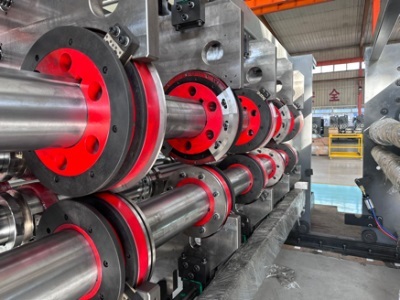

8 AXIS, 10 SCREW, 5 WHEELS, 3 CREASER
● Creasing wheel with PU Plated for good creasing and avoiding paper crack
● Creasing rollers diameter:110mm,plated with rigid chrome and grinded surface,treated by balance rectification.
● Slotting holder rollers diameter:176mm,plated with rigid chrome and grinded surface,treated by balance rectification.
● Cast steel slotting guide plates makes slotting precise and never damage the slotting knife.
● 9 Crsi Slotting knives
● All the knives move and slotting holder move adjusted by PLC control
● Slotting holder rollers gap adjusted by electric control
● One-key adjustment, the computer automatically adjusts the slotting knifeDie-Cutting(Servo Motor Drive)
Servo motor drive
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● Die-cutting roller diameter 300mm, cast iron surface grinding and hard chrome plating
● The diameter of the pad roller is 388.9mm, and the surface of the cast iron material is ground and plated with hard chrome
● Electric adjustment of the gap between the die-cutting roller and the rubber pad roller
● The paper feeding roller gap is adjusted by PLC and touch screen
● Feed rollers are finely ground, plated with hard chrome and adjusted for dynamic balance to make the operation more stable
● Die-cut phase electric digital 360° adjustment. (Running and stopping can be adjusted)
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.

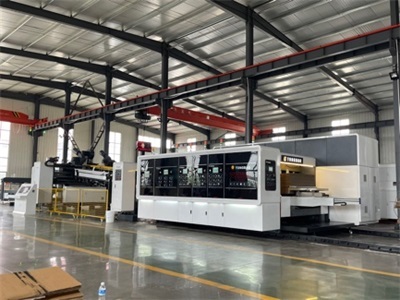

Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.

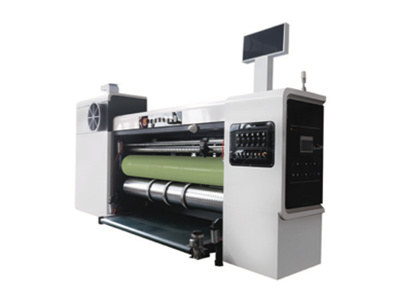

TB-ST Full Automatic Vacuum Transfer Servo feeder

Share to
- 产品描述
-
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-ST DESCRIPTION TB-ST Full Automatic Vacuum transfer servo feeder Printer Slotter Die cutter(Servo motor independent drive) Machine SERVO LEAD EDGE FEEDER UNIT
● 4 “Germany Bosch Rexroth Servo Motor Drive Pressure-FRESS Lead edge feeder system
● The height of the box can be extended indefinitely, The servo pressure free system has zero damage and zero pressure on the cardboard
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle
● Electric move the paper tray
● Siemens (Germany) automatic control system(PLC/ /touch screen)
● Inverter DELTA(Taiwan)
● Input box parameter on Main Touch Screen, One-Click change order can be realized
● Industrial control imaging TV monitoring(23.5-inch color display on counter unit+machine-back side imaging display monitor on die cutting unit + lead edge feeder unit + counter unit)1 Unit PRINTING UNIT/COLOR
● Vacuum transfer
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Servo controller(Touch Screen) Adjustment machine phase
● Frequency (Touch Screen) Adjustment bellows lift
● Frequency conversion control adsorption air volume
● The air gate automatic adjustment device automatically adjusts the suction area according to the size of the cardboard.SLOTTING UNIT
● Computerized Synchronous moving slotting & creasing & Pre-creasing, Auto adjust by Touch Screen with memory for setting carton size
● 8 Axis heavy Design,(Pre-creaser)- (Pre-creaser)- (Creaser)- (slotter)
● Pre-creaser shaft core diameter 120mm (solid shaft)
● Creaser shaft core diameter 120mm (solid shaft)
● creaser shaft core diameter 120mm (solid shaft)
● Slotter shaft core diameter 110mm (Seamless steel pipe)
● Slotting left and right traverse speed: 100mm/12seconds
● Servo Controller (Touch Screen) Adjust Machine phase
● Frequency (Touch Screen) Adjust roller gap1 Unit SERVO DIE CUTTING UNIT
● Servo Drive rotary die cutting system
● Differential compensation device
● Servo motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt1 Unit INDEPENDENT CONTROL CABINET
● Can be connected to the factory production management system
● Enter box parameters to realize one key order adjustment of the whole machine, store 10,000 orders, and quickly change orders1 Unit Machine Main Parameter
Model TB-ST920 TB-ST924 TB-ST1224 TB-ST1228 TB-ST1428 Inside width of machine 2200mm 2600mm 2600mm 3000mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2800mm 1450x2800mm Skip feeding size ∞x2000mm ∞x2400mm ∞x2400mm ∞x2800mm ∞x2800mm Minimum paper size 300x680mm 300x680mm 350x680mm 350x680mm 430x680mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2600mm 1450x2600mm Design speed of machine 300pcs/min 300pcs/min 250pcs/min 250pcs/min 200pcs/min Economic speed of machine 0-280pcs/min 0-280pcs/min 0-230pcs/min 0-230pcs/min 0-180pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 13mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm 480mm Standard printing thickness 1.5-12mm Printing registration precision ≤±0.5mm Die-cutting precision ≤±1mm The thickness of wall 60mm PLC/Touch screen SIEMENS (GERMANY) Inverter DELTA（TAIWAN） Servo motor for Lead edge feeder unit Rexroth(GERMANY) Servo motor for die cutting unit VEICHI(TAIWAN) Servo controller for printing unit phase DELTA（TAIWAN） Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN) Material of main gear 20CrMnTi Anvil cover Maxdure(TAIWAN) Function Of Feeding(Servo Motor Drive)
SERVO MOTOR DRIVE (ZERO PRESSURE)
● Adopt negative pressure suction flat sun feeding device, suit for any type flute board and any direction feeding, and ensure feeding accuracy.
● Feeding gap accurate adjustment, never damaged strength of the corrugate board
● Adopt pneumatic locking, with protection for overdrive, safe for operation.
● The roller wheel type lead edge feeding vacuum feeding system ensure warped paperboard feeds accurately, skip feeding for large paperboard printing requirement. Automatic return to zero position. Motorized adjustment of feeding roll gap . Continue feeding and skip feeding functionFunction Of Printing Department
Vacuum transfer
● The vacuum transfer adopted for the whole process feeding is able to feed the cardboard smoothly and precisely which improve the printing precise.
● The gap between vacuum cabinet and printing roller adjusted by PLC and touch screen
● Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
● Anilox roller external diameter is ¢212 mm, steel pipe is plated with grinded surface and laser-carved anilox
● Printing roller diameter: 405mm(including 7.2mm printing plate with liner)
● Printing pressing roller external diameter is ¢188mm,Steel pipe is plated with rigid chrome and grinded surface.
● Ratchet wheel fixed plate axle.
● Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch.
● Printing plate roller traverse PLC control adjustment, movement range +/-5mm
● Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
● Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
● Automatic reposition after washing the printing template during the printing procession.
● Automatic ink washing system.Slotting( Full Computerized)
8 AXIS, 10 SCREW, 5 WHEELS, 3 CREASER
● Creasing wheel with PU Plated for good creasing and avoiding paper crack
● Creasing rollers diameter:110mm,plated with rigid chrome and grinded surface,treated by balance rectification.
● Slotting holder rollers diameter:176mm,plated with rigid chrome and grinded surface,treated by balance rectification.
● Cast steel slotting guide plates makes slotting precise and never damage the slotting knife.
● 9 Crsi Slotting knives
● All the knives move and slotting holder move adjusted by PLC control
● Slotting holder rollers gap adjusted by electric control
● One-key adjustment, the computer automatically adjusts the slotting knifeDie-Cutting(Servo Motor Drive)
Servo motor drive
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● Die-cutting roller diameter 300mm, cast iron surface grinding and hard chrome plating
● The diameter of the pad roller is 388.9mm, and the surface of the cast iron material is ground and plated with hard chrome
● Electric adjustment of the gap between the die-cutting roller and the rubber pad roller
● The paper feeding roller gap is adjusted by PLC and touch screen
● Feed rollers are finely ground, plated with hard chrome and adjusted for dynamic balance to make the operation more stable
● Die-cut phase electric digital 360° adjustment. (Running and stopping can be adjusted)
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
