- 产品描述
-

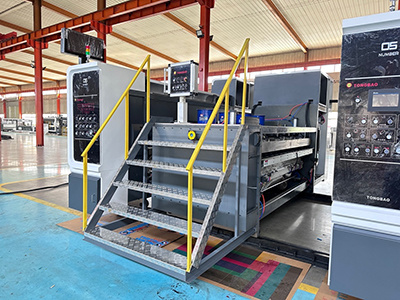

SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-GYK DESCRIPTION High Definition Full Automatic Vacuum Transfer Flexo Printing & IR Dryer & Varnish & IR Dryer & Rotary die cutter(Servo motor independent drive) With Slotting Attchment Vibration Stacker SERVO LEAD EDGE FEEDER UNIT
● 4 “Germany Bosch Rexroth Servo Motor Drive Pressure-FRESS Lead edge feeder system
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle
● Electric move the paper tray
● Siemens (Germany) automatic control system(PLC/ /touch screen)
● Inverter DELTA(Taiwan)
● Input box parameter on Main Touch Screen, One-Click change order can be realized
● Industrial control imaging TV monitoring(23.5-inch color display on counter unit+machine-back side imaging display monitor on die cutting unit + lead edge feeder unit + counter unit)1 Unit
PRINTING UNIT/COLOR

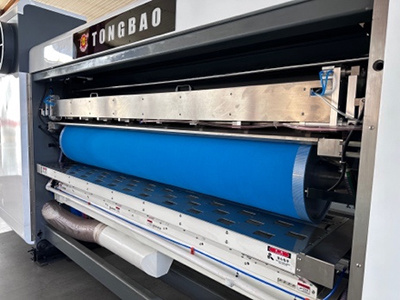

● Vacuum transfer
● High Definition
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Servo controller(Touch Screen) Adjustment machine phase
● Frequency (Touch Screen) Adjustment bellows lift
● Frequency conversion control adsorption air volume
● The air gate automatic adjustment device automatically adjusts the suction area according to the size of the cardboard.
Each printing group is equipped with infrared drying6 Unit
First IR DRYER UNIT
● Infrared heating system, the temperature rise is fast and stable.
● Temperature constant temperature control, segment hea ting, saving electric heating power.
● Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
● Powerful fan circulation makes the drying speed more rapid.
● Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.1 Unit
VARNISH UNIT
● Vacuum transfer
● Ceramic Anilox Roller+Rubber Roller
● Printing roller with plate hanging groove, with cushion
- Air distribution gun cleaning Printing roller device
● Safety braking device with personnel entering the machine
● Servo controller (Touch Screen) Adjust Machine phase
● Frequency (Touch Screen) Adjust Bellows lift
● Frequency conversion control adsorption air volume1 Unit
Second IR DRYER UNIT
● Infrared heating system, the temperature rise is fast and stable.
● Temperature constant temperature control, segment hea ting, saving electric heating power.
● Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
● Powerful fan circulation makes the drying speed more rapid.
● Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.1 Unit
SERVO DIE CUTTING UNIT
● Servo Drive rotary die cutting system
● Differential compensation device
● Servo motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt
● With Slotting attachment1 Unit
VIBATION UNIT
● Independent stripping unit.
● Belt transfer, angle adjustable fan assistant clean up scrap.
● Dual vibration roll, speed frequency invert control.
● Three Powerful fans clean up scraps.
● Duct blowing waste paper1 Unit

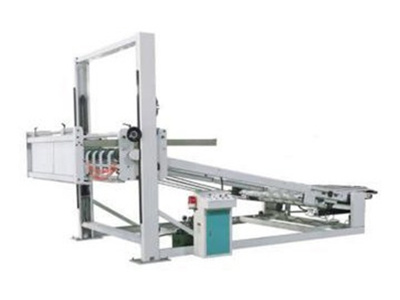

STACKER UNIT
● Heavy duty
● Stacking height: 1800mm1 Unit
INDEPENDENT CONTROL CABINET
● Can be connected to the factory production management system
● Enter box parameters to realize one key order adjustment of the whole machine, store 10,000 orders, and quickly change orders1 Unit Machine Main Parameter
Model TB-GYK920 TB-GYK924 TB-GYK1224 TB-GYK1228 Inside width of machine 2200mm 2600mm 2600mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2800mm Minimum paper size 300x600mm 300x600mm 350x700mm 350x700mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2600mm Design speed of machine 200pcs/min 200pcs/min 200pcs/min 200pcs/min Economic speed of machine 0-180pcs/min 0-180pcs/min 0-180pcs/min 0-180pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 13mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm Standard printing thickness 1.5-12mm Printing registration precision ≤±0.25mm The thickness of wall 60mm PLC/Touch screen PLC SIEMENS (GERMANY) Inverter DELTA（TAIWAN） Servo motor for die cutting unit VEICHI(TAIWAN) Servo controller for printing unit phase DELTA（TAIWAN Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN)日本NSK Material of main gear 20CrMnTi Material of slotting knife 9CrSi Anvil cover Maxdure(TAIWAN) Function Of Feeding(Servo Motor Drive)

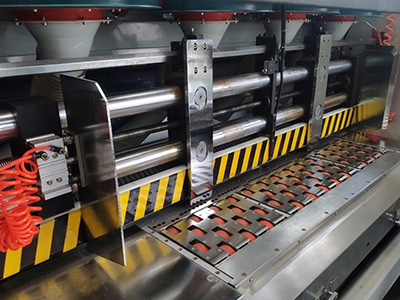

● Adopt four-row leading edge paper feeding system to improve the accuracy and smoothness of paper feeding
● Adopt frequency conversion to adjust the air volume, increase the stability and accuracy of thin cardboard and warped cardboard transmission
● Left and right side baffles, electric guide mechanism, stable and precise displacement
● Clutch warning, double pneumatic locking, safe and reliable
● The upper paper feed roller (roller diameter is 136mm) is seamless steel pipe, wrapped with wear-resistant rubber, and adjusted for balance.
● The down paper feeding roller(Ф136mm) is the seamless steel tube , ginning and hard chromium plating ,balance correction .
● The gap between the paper feeding roller and the worm wheel are adjusted by the dial, the adjustment range is 0-12mm, and the structure of the cross slider is adopted, and the transmission gear will always maintain the correct meshing state when adjusting.
● Equipped with high-quality brushes and a dust suction device, it can remove a large amount of impurities on the printing surface of the cardboard and improve the printing quality.Function Of Printing Department

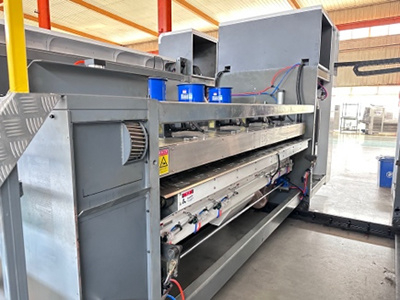

● The vacuum transfer adopted for the whole process feeding is able to feed the cardboard smoothly and precisely which improve the printing precise.
● The gap between vacuum cabinet and printing roller adjusted by PLC and touch screen
● Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
● Ceramic anilox and doctor blade structure.
● Ceramic anilox roller external diameter is ¢212 mm, steel pipe is plated with ceramic grinded surface and laser-carved anilox
● Close type doctor blade system and innovated ink-closed design to make the ink distributed very well, save ink
● Pneumatic lock, doctor blade compensition structure to make the ceramic roller touch with doctor well for good ink distribution effect

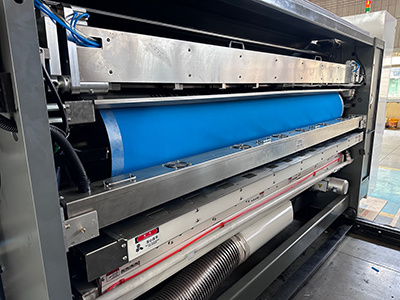

● Printing roller diameter: 300mm(including 7.2mm printing plate with liner)
● Printing pressing roller external diameter is ¢188mm,Steel pipe is plated with rigid chrome and grinded surface.
● Ratchet wheel fixed plate axle.
● Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch.
● Printing plate roller traverse PLC control adjustment, movement range +/-5mm
● Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
● Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
● Automatic reposition after washing the printing template during the printing procession.
● Automatic ink washing system.
● Each printing group is equipped with infrared drying.First IR Drying Unit
Double drying
● Infrared heating system, the temperature rise is fast and stable. The heating power is about 45 kw.
● Temperature constant temperature control, segment heating, saving electric heating power.
● Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
● Powerful fan circulation makes the drying speed more rapid.
● Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.Varnish Unit
● Select high-quality steel, professional production, dynamic balance test and fine grinding, the surface of the roller is engraved with latitude and longitude lines, and the plate is quicker.
● The surface is hard chrome plated for durability.
● There is a hanging slot, 10mm hanging strip with ratchet fixed coil shaft, convenient for hanging version.
● It is equipped with a foot switch, which controls the Roller to be positive and reverse, which is convenient for hanging and unloading.
● Touch screen control or electric control 360 degrees positive and negative adjustment of the printing roller, using inverter two-speed control. The man-machine interface is set to automatically locate.
● The touch screen control or button controls the axial adjustment of the printing roller with a maximum movement of ±10mm. The man-machine interface is set to automatically locate.Die-Cutting(Servo Motor Drive) With Slotting Attachment

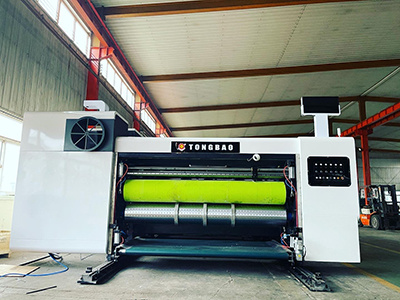

Servo motor drive
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● Die-cutting roller diameter 300mm, cast iron surface grinding and hard chrome plating
● The diameter of the pad roller is 388.9mm, and the surface of the cast iron material is ground and plated with hard chrome
● Electric adjustment of the gap between the die-cutting roller and the rubber pad roller
● The paper feeding roller gap is adjusted by PLC and touch screen
● Feed rollers are finely ground, plated with hard chrome and adjusted for dynamic balance to make the operation more stable
● Die-cut phase electric digital 360° adjustment. (Running and stopping can be adjusted)
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.With Slotting attachment.Vibration And Stacker

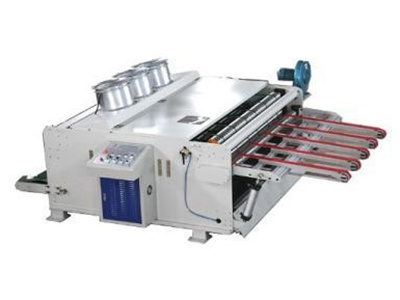

● This part is mainly applicable to chip removal after circular die cutting machine processing, effectively reducing the waste of human resources for manual cleaning. So that the carton processing efficiency is higher and the process is more perfect.
● 3 fan for stable pass and delivery.
● Hydraulic lift up and down, safe and easy operation.

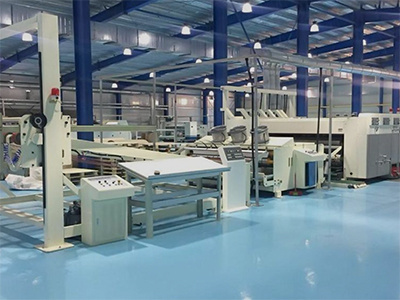

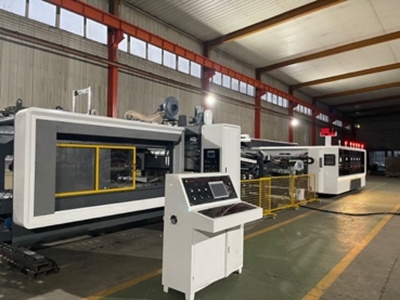

Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
TB-GYK High Definition Full Automatic Vacuum Transfer Flexo Printing & IR Dryer & Varnish & IR Dryer & Rotary Die Cutter(Servo motor independent drive) With Slotting Attachment Vibration Stacker

Share to
- 产品描述
-
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-GYK DESCRIPTION High Definition Full Automatic Vacuum Transfer Flexo Printing & IR Dryer & Varnish & IR Dryer & Rotary die cutter(Servo motor independent drive) With Slotting Attchment Vibration Stacker SERVO LEAD EDGE FEEDER UNIT
● 4 “Germany Bosch Rexroth Servo Motor Drive Pressure-FRESS Lead edge feeder system
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle
● Electric move the paper tray
● Siemens (Germany) automatic control system(PLC/ /touch screen)
● Inverter DELTA(Taiwan)
● Input box parameter on Main Touch Screen, One-Click change order can be realized
● Industrial control imaging TV monitoring(23.5-inch color display on counter unit+machine-back side imaging display monitor on die cutting unit + lead edge feeder unit + counter unit)1 Unit PRINTING UNIT/COLOR
● Vacuum transfer
● High Definition
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Servo controller(Touch Screen) Adjustment machine phase
● Frequency (Touch Screen) Adjustment bellows lift
● Frequency conversion control adsorption air volume
● The air gate automatic adjustment device automatically adjusts the suction area according to the size of the cardboard.
Each printing group is equipped with infrared drying6 Unit First IR DRYER UNIT
● Infrared heating system, the temperature rise is fast and stable.
● Temperature constant temperature control, segment hea ting, saving electric heating power.
● Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
● Powerful fan circulation makes the drying speed more rapid.
● Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.1 Unit VARNISH UNIT
● Vacuum transfer
● Ceramic Anilox Roller+Rubber Roller
● Printing roller with plate hanging groove, with cushion
- Air distribution gun cleaning Printing roller device
● Safety braking device with personnel entering the machine
● Servo controller (Touch Screen) Adjust Machine phase
● Frequency (Touch Screen) Adjust Bellows lift
● Frequency conversion control adsorption air volume1 Unit Second IR DRYER UNIT
● Infrared heating system, the temperature rise is fast and stable.
● Temperature constant temperature control, segment hea ting, saving electric heating power.
● Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
● Powerful fan circulation makes the drying speed more rapid.
● Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.1 Unit SERVO DIE CUTTING UNIT
● Servo Drive rotary die cutting system
● Differential compensation device
● Servo motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt
● With Slotting attachment1 Unit VIBATION UNIT
● Independent stripping unit.
● Belt transfer, angle adjustable fan assistant clean up scrap.
● Dual vibration roll, speed frequency invert control.
● Three Powerful fans clean up scraps.
● Duct blowing waste paper1 Unit STACKER UNIT
● Heavy duty
● Stacking height: 1800mm1 Unit INDEPENDENT CONTROL CABINET
● Can be connected to the factory production management system
● Enter box parameters to realize one key order adjustment of the whole machine, store 10,000 orders, and quickly change orders1 Unit Machine Main Parameter
Model TB-GYK920 TB-GYK924 TB-GYK1224 TB-GYK1228 Inside width of machine 2200mm 2600mm 2600mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2800mm Minimum paper size 300x600mm 300x600mm 350x700mm 350x700mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2600mm Design speed of machine 200pcs/min 200pcs/min 200pcs/min 200pcs/min Economic speed of machine 0-180pcs/min 0-180pcs/min 0-180pcs/min 0-180pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 13mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm Standard printing thickness 1.5-12mm Printing registration precision ≤±0.25mm The thickness of wall 60mm PLC/Touch screen PLC SIEMENS (GERMANY) Inverter DELTA（TAIWAN） Servo motor for die cutting unit VEICHI(TAIWAN) Servo controller for printing unit phase DELTA（TAIWAN Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN)日本NSK Material of main gear 20CrMnTi Material of slotting knife 9CrSi Anvil cover Maxdure(TAIWAN) Function Of Feeding(Servo Motor Drive)
● Adopt four-row leading edge paper feeding system to improve the accuracy and smoothness of paper feeding
● Adopt frequency conversion to adjust the air volume, increase the stability and accuracy of thin cardboard and warped cardboard transmission
● Left and right side baffles, electric guide mechanism, stable and precise displacement
● Clutch warning, double pneumatic locking, safe and reliable
● The upper paper feed roller (roller diameter is 136mm) is seamless steel pipe, wrapped with wear-resistant rubber, and adjusted for balance.
● The down paper feeding roller(Ф136mm) is the seamless steel tube , ginning and hard chromium plating ,balance correction .
● The gap between the paper feeding roller and the worm wheel are adjusted by the dial, the adjustment range is 0-12mm, and the structure of the cross slider is adopted, and the transmission gear will always maintain the correct meshing state when adjusting.
● Equipped with high-quality brushes and a dust suction device, it can remove a large amount of impurities on the printing surface of the cardboard and improve the printing quality.Function Of Printing Department
● The vacuum transfer adopted for the whole process feeding is able to feed the cardboard smoothly and precisely which improve the printing precise.
● The gap between vacuum cabinet and printing roller adjusted by PLC and touch screen
● Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
● Ceramic anilox and doctor blade structure.
● Ceramic anilox roller external diameter is ¢212 mm, steel pipe is plated with ceramic grinded surface and laser-carved anilox
● Close type doctor blade system and innovated ink-closed design to make the ink distributed very well, save ink
● Pneumatic lock, doctor blade compensition structure to make the ceramic roller touch with doctor well for good ink distribution effect
● Printing roller diameter: 300mm(including 7.2mm printing plate with liner)
● Printing pressing roller external diameter is ¢188mm,Steel pipe is plated with rigid chrome and grinded surface.
● Ratchet wheel fixed plate axle.
● Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch.
● Printing plate roller traverse PLC control adjustment, movement range +/-5mm
● Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
● Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
● Automatic reposition after washing the printing template during the printing procession.
● Automatic ink washing system.
● Each printing group is equipped with infrared drying.First IR Drying Unit
Double drying
● Infrared heating system, the temperature rise is fast and stable. The heating power is about 45 kw.
● Temperature constant temperature control, segment heating, saving electric heating power.
● Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
● Powerful fan circulation makes the drying speed more rapid.
● Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.Varnish Unit
● Select high-quality steel, professional production, dynamic balance test and fine grinding, the surface of the roller is engraved with latitude and longitude lines, and the plate is quicker.
● The surface is hard chrome plated for durability.
● There is a hanging slot, 10mm hanging strip with ratchet fixed coil shaft, convenient for hanging version.
● It is equipped with a foot switch, which controls the Roller to be positive and reverse, which is convenient for hanging and unloading.
● Touch screen control or electric control 360 degrees positive and negative adjustment of the printing roller, using inverter two-speed control. The man-machine interface is set to automatically locate.
● The touch screen control or button controls the axial adjustment of the printing roller with a maximum movement of ±10mm. The man-machine interface is set to automatically locate.Die-Cutting(Servo Motor Drive) With Slotting Attachment
Servo motor drive
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● Die-cutting roller diameter 300mm, cast iron surface grinding and hard chrome plating
● The diameter of the pad roller is 388.9mm, and the surface of the cast iron material is ground and plated with hard chrome
● Electric adjustment of the gap between the die-cutting roller and the rubber pad roller
● The paper feeding roller gap is adjusted by PLC and touch screen
● Feed rollers are finely ground, plated with hard chrome and adjusted for dynamic balance to make the operation more stable
● Die-cut phase electric digital 360° adjustment. (Running and stopping can be adjusted)
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.With Slotting attachment.Vibration And Stacker
● This part is mainly applicable to chip removal after circular die cutting machine processing, effectively reducing the waste of human resources for manual cleaning. So that the carton processing efficiency is higher and the process is more perfect.
● 3 fan for stable pass and delivery.
● Hydraulic lift up and down, safe and easy operation.
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
