- 产品描述
-
Product Overview
As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.orders can be changed quickly with two machines.
Technical Parameter
Model 1800 Max slitting size（mm） 1850 Min slitting size（mm） 130 Min scorer width（mm） Zero pressure line type 0 mm Scorer height（mm） 0-12 Blade size（mm） 200*122 Blade/scorer 5/8 Machine dimension 2830*1300*2000(mm) Power 12kw Speed 130m/min Order change time 1-5S Function and characteristic
● The space between slitting blades is automatic adjusted,automatic locking,improve work efficiency.
● Using the synchronous belt transmission,low noise.
● Taiwan colorful touch screen,simple operation.
● Adopt computer control automatic or manual grinding.
● The control system is composed of high performance and double frequency converter,energy saving,stable and reliable.
● Keep the synchronous speed with the production line automatically.
● Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.

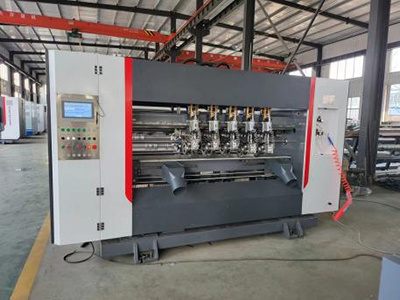

Machine Pictures

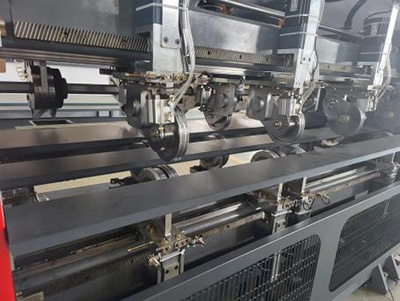

● The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency
● Alloyed steel thin-blades, sharp and long life of over 800 million meters, auto sharpening. automatic grinding.

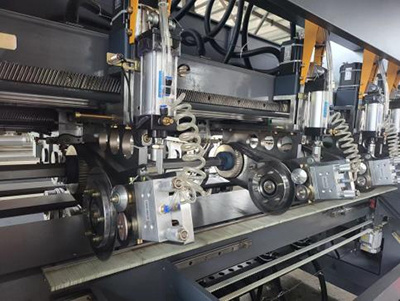

● Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
