- 产品描述
-
Feeding department
● Paper feeding: Chain, paper pushing feeding.
● Can attached with the automatic feeding unit.

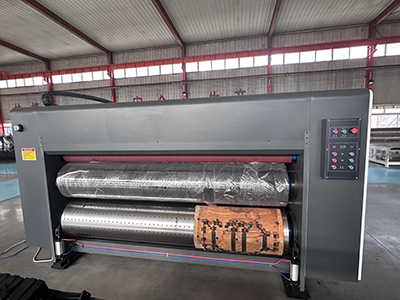

Printing department
● Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chraminum plating, balance correction, stable operation.
● Ratchet wheel fixed scroll can achieve fast changing plate.
● Paper feeding pressure, printing pressure, transmission pressure, auto-locked adjustment.
● Metal anilox roller ( adopts domestic famous professional produced one, 180 wire-280 wire)
● The rubber roller adopts famous domestic brand ( 80% natural rubber )
● Phase adjustment by planetary ( no matter working or stopping )
● Pneumatic lifting and down the anilox roller, auto ink distributing.
● Main gear adopts free-key connection, can long-time keep the printing accuracy.
● The driving gear oiled manual focus.

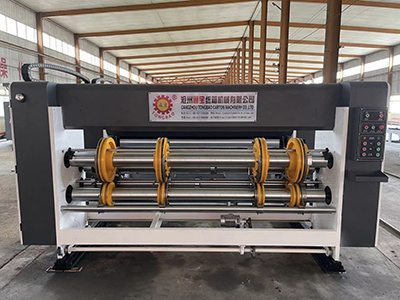

Slotting department
● The up and down pressing the line roller, the up and down slotting roller, surface grinding, hard chraminum plating, balance correction, stable operation.
● The slotting knives pedestal can be worm-type adjustment according to the thickness of cardboard. ( three-layer, five-layer and seven-layer)
● The creasing knife pedestal worm-type up and down adjustment according to the thickness of cardboard。（ three-layer, five-layer and seven-layer ）
● The back slotting knife ( height of box) ,four knives adjustment synchromous, easy working.
● The main gear adopts free-key connection, can maintain the long-time slotting accuracy.
● Electric department of each unite, pneumatic locking.
● Phase adjustment by planetary ( no matter working or stopping ), Micro-computer automatically adjusts the number of NC）
● The back of machine equipped with electric switch, can correct the slotting position and other functions.Die-cutting department
● Die-cutter phase is adjusted through computer and digital electric control.
● Die-cutting knife horizontal adjustment undergoes the computer and digital and electric control of a scope of 5mm.
● Glue roller cutting and trimming facilities include the cushion able to be used for many times and save the cost in a great deal.
● Cushion roll adopts high -quality steel, grind the surface and do the hard chrome plating,diameter 410mm
● The cushion rollers mechanical, horizontal cam facility of a scope of 35mm prolong the lifespan of the die-cutting cushion.
● Automatic to adjust the distance between cushion roll and knives roll.
● Automatic to adjust the distance between cushion roll and down roll.
● Automatic lathe the cushion to reduce the pressure of die-cutter.
● Diameter of pass paper axle :86mm,adopt high quality steel.
● Free die mould slotting unit,no need to make the die mould when making normal box,saving cost and improved efficiency.Main Technical parameter
Model TB-D1224 TB-D1426 TB-D1428 Max. paper coverage area 1200x2400mm 1450x2600mm 1450x2800mm Effective printing area 1200x2200mm 1450x2400mm 1450x2600mm Finish speed(pieces/min) 0-50 Power of main motor 4.0 Thickness of printing plank(mm) 4-7
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
TB-D Semi-Auto Water Ink Printer Slotter Die Cutter Machine
