SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-FLINE DESCRIPTION TB-FLINE Automatic Printing die cutting with slotter attachment & Folder Gluer PP Strapping INLINE LEAD EDGE FEEDER UNIT

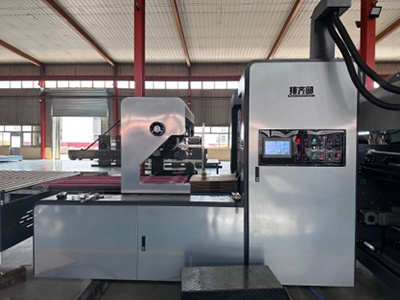

● “Komori Seiko” high precision Lead edge feeder system
● Four-row wheel design makes paper feeding more stable
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle
● Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
● Electric move the paper tray
● Delta（Taiwan）automatic control system(PLC)1 Unit

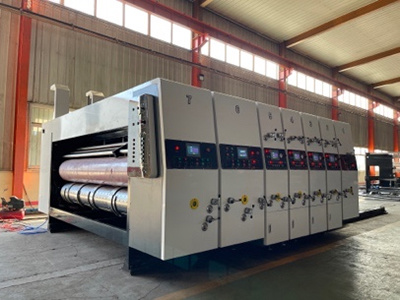

PRINTING UNIT/COLOR
● 200LPI-300LPI（Steel Anilox Roller）, can be customized by details requirements
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Motor controller(Touch Screen) Adjustment machine phase1 Unit

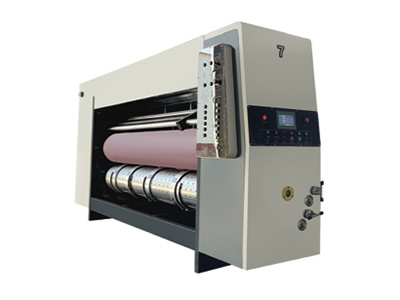

DIE CUTTING UNIT （SLOTTING ATTACHMENT）
● The die-cutting roller can move left and right and is electrically adjusted
● Differential compensation device
● Motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt
● Equipped slotting attachment1 Unit

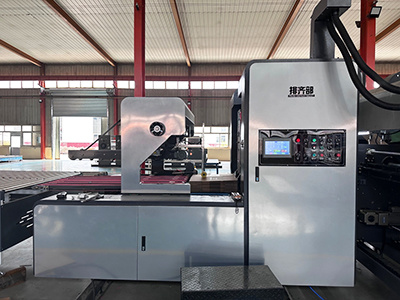

FOLDER GLUER UNIT
● Glue applicator wheel RMP synchronized with folding belts
● Volume of glue application suits for speed of main unit
● High-pressure air blower equipped to get rid of wasted scraps existing at glue flaps
● Folding guiding wheels equipped at end of folder, achieve precise folding
● Both bottom folding belts driven by servo motors independently, greatly reducing big tolerance happened in process of transfer
● Servo driven stacking fork, precise & reliable
● Timing driven conveyor, neat & tidy
● Ejector equipped with vacuum air blower, press cartons down & neatly
● Pressurized roller equipped after folding to force forming of glued & folded cartons, pressure motorized adjustable1 Unit

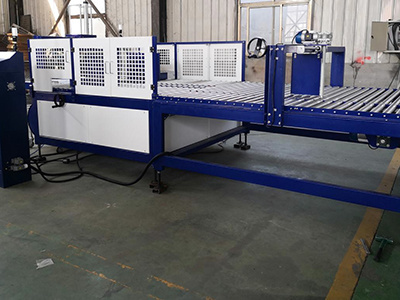

STRAPPING UNIT
● Using a high strength blade with a hardness of 65, greatly improving the ability to cut the tape and the life of the blade1 Unit
INDEPENDENT CONTROL CABINET
● Can be connected to the factory production management system
● Enter box parameters to realize one key order adjustment of the whole machine, store 10,000 orders, and quickly change orders1 Unit
Machine Main Parameter
Model TB-FLINE920 TB-FLINE924 TB-FLINE1224 TB-FLINE1228 Inside width of machine 2200mm 2600mm 2600mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2800mm Minimum paper size 300x600mm 300x600mm 350x700mm 350x700mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2600mm Design speed of machine 200pcs/min 200pcs/min 180pcs/min 180pcs/min Economic speed of machine 0-180pcs/min 0-180pcs/min 0-170pcs/min 0-170pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 13mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm Standard printing thickness 1.5-12mm Printing registration precision ≤±0.5mm Die-cutting precision ≤±1mm Wall board thickness 60mm Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN) Material of main gear 20CrMnTi Anvil cover Maxdure(TAIWAN) Lead Edge Feeder Unit

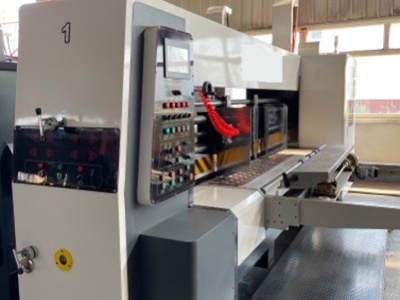

Lead-edge Feeding System
● Adopt negative pressure suction flat sun feeding device, suit for any type flute board and any direction feeding, and ensure feeding accuracy.
● Feeding gap accurate adjustment, never damaged strength of the corrugate board
● Adopt pneumatic locking, with protection for overdrive, safe for operation.
● The roller wheel type lead edge feeding vacuum feeding system ensure warped paperboard feeds accurately, skip feeding for large paperboard printing requirement. Automatic return to zero position. Continue feeding and skip feeding functionMachine Separation & Combination
● Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
● Air pressure interlocks, lock securely, conveniently and accurately.
● Machine clutch drive shaft is equipped with overload protection device.
● Active self-locking function: if unit is not completely locking state,
● The host cannot start, to ensure the safety of machine and operator;
● while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse and personal injury.Dust-Removal System
● Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.Function Of Printing Department

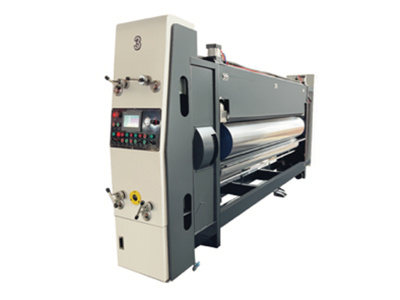

Printing Roller
● With printing plate, outer diameter φ300mm
● High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
● Roller horizontal direction and circumferential direction with datum line, convenient for align plate
● Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
● Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.
● Installed with foot switch to control plate roller reversing, convenient change plate
● Auto-zero function,order memory.
● Printing roller plate-change and fix-plate function.
● Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.Pressing Roller
● Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
● Diameter φ154 mm, surface grinded, hard chromium-plated
● Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
● Printing roller can be adjusted for a distance 0-12mm
● pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.Anilox Roller
● Outer diameter φ215mm
● Steel anilox roller, brand HAILI
● Steel anilox roller mesh：150-300 lineRubber Roller
● Outer diameter φ200mm
● Rubber roller adopts Guangdong Jingyang.
● Overrunning clutch and automatic idling device, to prevent the ink dried
● Rubber roller drum type middle part higher, to ensure ink quality
● Rapid spaced spinner self-locking device, ensures uniform ink
● Ink distributing roller independent drive mechanism, ensure ink qualityFeeder Roller
● Up feeding roller diameterφ85mm, Down feeding roller diameter:154mm. four wheels feeding
● Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm
● Hand adjustable rapid clearance adjustment self-locking device, fast, reliable.INK System
● Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability
● Circulating pneumatic ink
● Screen for filtering impurities, guarantee printing qualityPhase Adjust System
● Planetary gear structure
● Digital computer 360 ° adjustment, both running and stopping state conditions
● Printing phase adjustment of PLC computer display adjustment
● After units separate, automatic reset system (eraser memory)Phase Fix System
● Pneumatic brake device, Unit separation and combination or phase adjustment, original point of transmission gear with constant
Zero Device
● Auto-zero device, to ensure that the units have a uniform adjusted basis, reducing cardboard waste,edition memory function.Die-Cutting Unit（Slotting Attachment）
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● The gap between the rubber pad roller and the die roller is controlled electrically, the paper feeding stops, the soft roller rises automatically, and returns to the working position when working.
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.
● The worn rubber pad roller can be repaired to keep the surface of the rubber pad flat.
● Equipped with a slotted ring, the cut paper will be perfect and beautiful.
● With waste conveyor belt, it can effectively transfer the waste paper generated by slotting and die cutting outside the machine.
● With the air duct blowing chips, the brush removes chips, effectively stripping the waste paper generated by die cutting.Gluer Part
● Glue applicator wheel RMP synchronized with folding belts

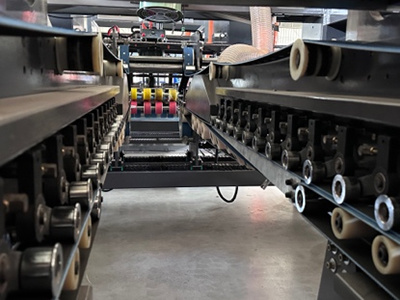

● Volume of glue application suits for speed of main unitFolding Part
● High-pressure air blower equipped to get rid of wasted scraps existing at glue flaps.
● Folding belts, assisted by vacuum suction, achieve reliable transfer of folding carton.
● Pneumatic control of tension of folding belts, released after machine stops, eliminating belts worn-out.
● Folding guiding wheels equipped at end of folder, achieve precise folding.
● Both bottom folding belts driven by servo motors independently, greatly reducing big tolerance happened in process of transfer.Stacker
● Pressurized roller equipped after folding to force forming of glued & folded cartons, pressure motorized adjustable.
● Mechanical organizer pads glued & folded cartons to achieve more precise folding.Counter & Ejector
● Up loading & counting, avoiding glued area dislocated.
● Servo driven stacking fork, precise & reliable
● Timing driven conveyor, neat & tidy.
● Ejector equipped with vacuum air blower, press cartons down & neatly.Strapping Unit
(1) VOLTAGE :AC380V,50/60Hz
(2) STRAPPING SIZE : min package size : width 80mm *height 60mm Standard
(3) Frame size : width 1250mm*height 500mm
(4) Working table height : 850mm
(5) Weight beating capacity :80kg
(6) Strapping speed : ≤30 time/min
(7) Strapping strength : 0-45kg
(8) PP wire specs : PP, width 5mm/ 6mm
(9) PP Roll width: 170mm-190mm
(10) PP roll inner diameter :200-210mm outer diameter :400-450mm
(11) Adhesion method: hot melt method, bottom bonding, bonding surface ≥90%, and the bonding position deviation ≤ 2mm
(12) Machine weight :280kg
(13) Optional : PP wire width 8mm/9mm/11mm/12mm
(14) Noise : working environment ,noise ≤75dB A
(15) Working environment : humidity 90% , temperature 0-40℃

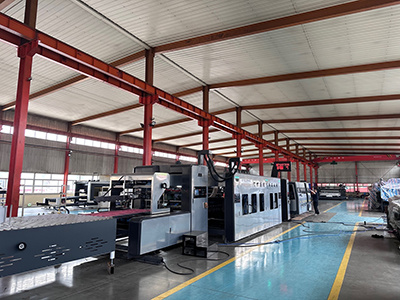

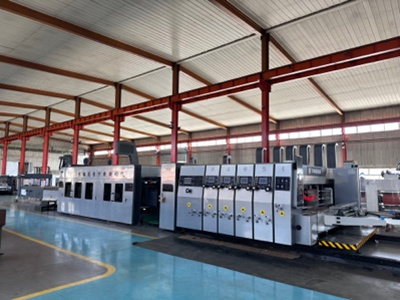

Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.

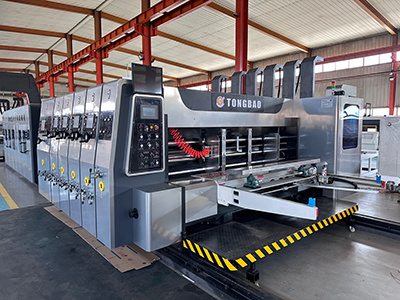

TB-FLINE Automatic Printing Die cutting with slotter attachment & Folder Gluer PP Strapping INLINE

Share to
- 产品描述
-
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-FLINE DESCRIPTION TB-FLINE Automatic Printing die cutting with slotter attachment & Folder Gluer PP Strapping INLINE LEAD EDGE FEEDER UNIT
● “Komori Seiko” high precision Lead edge feeder system
● Four-row wheel design makes paper feeding more stable
● Dust removal device
● Linear guide rail traverses the baffle to enhance adjustment stability and improve paper feeding accuracy
● Electric adjustment left and right baffle
● Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
● Electric move the paper tray
● Delta（Taiwan）automatic control system(PLC)1 Unit PRINTING UNIT/COLOR
● 200LPI-300LPI（Steel Anilox Roller）, can be customized by details requirements
● Printing roller with plate hanging groove, with cushion
● Equipped with automatic ink washing device
● Air distribution gun cleaning printing roller device
● Safety braking device with personnel entering the machine
● Motor controller(Touch Screen) Adjustment machine phase1 Unit DIE CUTTING UNIT （SLOTTING ATTACHMENT）
● The die-cutting roller can move left and right and is electrically adjusted
● Differential compensation device
● Motor (Touch screen) to adjust the rotary die cutting phase
● Frequency(Touch screen) adjust roller gap
● Maxdure (Taiwan)die-cutting anvil cover
● Chip blowing device with air duct
● With strapping conveyor belt
● Equipped slotting attachment1 Unit FOLDER GLUER UNIT
● Glue applicator wheel RMP synchronized with folding belts
● Volume of glue application suits for speed of main unit
● High-pressure air blower equipped to get rid of wasted scraps existing at glue flaps
● Folding guiding wheels equipped at end of folder, achieve precise folding
● Both bottom folding belts driven by servo motors independently, greatly reducing big tolerance happened in process of transfer
● Servo driven stacking fork, precise & reliable
● Timing driven conveyor, neat & tidy
● Ejector equipped with vacuum air blower, press cartons down & neatly
● Pressurized roller equipped after folding to force forming of glued & folded cartons, pressure motorized adjustable1 Unit STRAPPING UNIT
● Using a high strength blade with a hardness of 65, greatly improving the ability to cut the tape and the life of the blade1 Unit INDEPENDENT CONTROL CABINET
● Can be connected to the factory production management system
● Enter box parameters to realize one key order adjustment of the whole machine, store 10,000 orders, and quickly change orders1 Unit Machine Main Parameter
Model TB-FLINE920 TB-FLINE924 TB-FLINE1224 TB-FLINE1228 Inside width of machine 2200mm 2600mm 2600mm 3000mm Maximum paper size 920x2000mm 920x2400mm 1200x2400mm 1200x2800mm Minimum paper size 300x600mm 300x600mm 350x700mm 350x700mm Maximum printing size 920x1800mm 920x2200mm 1200x2200mm 1200x2600mm Design speed of machine 200pcs/min 200pcs/min 180pcs/min 180pcs/min Economic speed of machine 0-180pcs/min 0-180pcs/min 0-170pcs/min 0-170pcs/min Printing paper type A.B.C.E.A/B.B/C and A/B/C flute (The maximum gap is 13mm) Printing plate thickness(plus cushion) 4.8-7.2mm Diameter of printing roller(including printing plate) 300mm 300mm 405mm 405mm Standard printing thickness 1.5-12mm Printing registration precision ≤±0.5mm Die-cutting precision ≤±1mm Wall board thickness 60mm Electric components Schneider(FRANCE) Main motor SHANGHAI Main bearings NSK(JAPAN) Material of main gear 20CrMnTi Anvil cover Maxdure(TAIWAN) Lead Edge Feeder Unit
Lead-edge Feeding System
● Adopt negative pressure suction flat sun feeding device, suit for any type flute board and any direction feeding, and ensure feeding accuracy.
● Feeding gap accurate adjustment, never damaged strength of the corrugate board
● Adopt pneumatic locking, with protection for overdrive, safe for operation.
● The roller wheel type lead edge feeding vacuum feeding system ensure warped paperboard feeds accurately, skip feeding for large paperboard printing requirement. Automatic return to zero position. Continue feeding and skip feeding functionMachine Separation & Combination
● Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
● Air pressure interlocks, lock securely, conveniently and accurately.
● Machine clutch drive shaft is equipped with overload protection device.
● Active self-locking function: if unit is not completely locking state,
● The host cannot start, to ensure the safety of machine and operator;
● while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse and personal injury.Dust-Removal System
● Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.Function Of Printing Department
Printing Roller
● With printing plate, outer diameter φ300mm
● High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
● Roller horizontal direction and circumferential direction with datum line, convenient for align plate
● Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
● Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.
● Installed with foot switch to control plate roller reversing, convenient change plate
● Auto-zero function,order memory.
● Printing roller plate-change and fix-plate function.
● Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.Pressing Roller
● Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
● Diameter φ154 mm, surface grinded, hard chromium-plated
● Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
● Printing roller can be adjusted for a distance 0-12mm
● pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.Anilox Roller
● Outer diameter φ215mm
● Steel anilox roller, brand HAILI
● Steel anilox roller mesh：150-300 lineRubber Roller
● Outer diameter φ200mm
● Rubber roller adopts Guangdong Jingyang.
● Overrunning clutch and automatic idling device, to prevent the ink dried
● Rubber roller drum type middle part higher, to ensure ink quality
● Rapid spaced spinner self-locking device, ensures uniform ink
● Ink distributing roller independent drive mechanism, ensure ink qualityFeeder Roller
● Up feeding roller diameterφ85mm, Down feeding roller diameter:154mm. four wheels feeding
● Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm
● Hand adjustable rapid clearance adjustment self-locking device, fast, reliable.INK System
● Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability
● Circulating pneumatic ink
● Screen for filtering impurities, guarantee printing qualityPhase Adjust System
● Planetary gear structure
● Digital computer 360 ° adjustment, both running and stopping state conditions
● Printing phase adjustment of PLC computer display adjustment
● After units separate, automatic reset system (eraser memory)Phase Fix System
● Pneumatic brake device, Unit separation and combination or phase adjustment, original point of transmission gear with constant
Zero Device
● Auto-zero device, to ensure that the units have a uniform adjusted basis, reducing cardboard waste,edition memory function.Die-Cutting Unit（Slotting Attachment）
● The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right.
● The gap between the rubber pad roller and the die roller is controlled electrically, the paper feeding stops, the soft roller rises automatically, and returns to the working position when working.
● Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.
● The worn rubber pad roller can be repaired to keep the surface of the rubber pad flat.
● Equipped with a slotted ring, the cut paper will be perfect and beautiful.
● With waste conveyor belt, it can effectively transfer the waste paper generated by slotting and die cutting outside the machine.
● With the air duct blowing chips, the brush removes chips, effectively stripping the waste paper generated by die cutting.Gluer Part
● Glue applicator wheel RMP synchronized with folding belts
● Volume of glue application suits for speed of main unitFolding Part
● High-pressure air blower equipped to get rid of wasted scraps existing at glue flaps.
● Folding belts, assisted by vacuum suction, achieve reliable transfer of folding carton.
● Pneumatic control of tension of folding belts, released after machine stops, eliminating belts worn-out.
● Folding guiding wheels equipped at end of folder, achieve precise folding.
● Both bottom folding belts driven by servo motors independently, greatly reducing big tolerance happened in process of transfer.Stacker
● Pressurized roller equipped after folding to force forming of glued & folded cartons, pressure motorized adjustable.
● Mechanical organizer pads glued & folded cartons to achieve more precise folding.Counter & Ejector
● Up loading & counting, avoiding glued area dislocated.
● Servo driven stacking fork, precise & reliable
● Timing driven conveyor, neat & tidy.
● Ejector equipped with vacuum air blower, press cartons down & neatly.Strapping Unit
(1) VOLTAGE :AC380V,50/60Hz
(2) STRAPPING SIZE : min package size : width 80mm *height 60mm Standard
(3) Frame size : width 1250mm*height 500mm
(4) Working table height : 850mm
(5) Weight beating capacity :80kg
(6) Strapping speed : ≤30 time/min
(7) Strapping strength : 0-45kg
(8) PP wire specs : PP, width 5mm/ 6mm
(9) PP Roll width: 170mm-190mm
(10) PP roll inner diameter :200-210mm outer diameter :400-450mm
(11) Adhesion method: hot melt method, bottom bonding, bonding surface ≥90%, and the bonding position deviation ≤ 2mm
(12) Machine weight :280kg
(13) Optional : PP wire width 8mm/9mm/11mm/12mm
(14) Noise : working environment ,noise ≤75dB A
(15) Working environment : humidity 90% , temperature 0-40℃
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
