Function and characteristic
● Mitsubishi (Japan) servo driving, high precise, with few mechanical driving part to reduce machine damage.
● The whole control system adopt Omron PLC control system
● The contactor in the control box adopt SHINLIN(Taiwan)
● Display and circuit breaker adopt schneider ,photo-electric switch and proximity switch adopt Omron branch
● Bottom mould and blade adopt Japan Tungsten steel
● The whole stitching head adopt special steel to make, computer digital processed.
● Change the size only need one minute to finish, same as changing the stitching distance
● Can stitch box with lid or box no lid(when customer need the stitching the no lid box ,he must special order)
● With automatic counting function in the back part, the finished carton can be delivery to the end by pile,(as the setting number 1--99),it is convenient to strap
● Mechanical speed: 600 nails / min
● Stitching distance:30-120mm, can be adjusted.
● Two function in one machine, can stitch single ,double carton, not normal carton
● Size adopt whole electric type to control, changing size only need 2--3minute
● Can stitch strengthen wire, single staple, double line stitch, finish on one time
● Feeding part can automatic count
● Suitable for medium and small type carton ,stitch quick and easy.
● The computer set and automatic adjust the distance of stitching ,the stitch distance is 20--120mm can be adjusted
● Adopt computer screen to show the damage instruction
● No lid box can be stitch (special order)
● Suitable for 3-ply 5-ply 7-ply(when use it on 7-ply,customer should order in advance)
● Adopt 4 servo motor(2 head motor,2 control stitch distance motor)
● The whole machine electrical isolation transformer protection device
● Automatic wire feed system, no alarm, 20 kg grail flat wire, to save time
● Using the most advanced technology 4-axis system makes the machine more stable
Technical Parameter
Supplier TONGBAO CARTON MACHINERY CO.,LTD Description Hydraulic lifting Double Pieces Molding Semi-Automatic Stitching Machine(Four Servo Drive) Machine Parameter

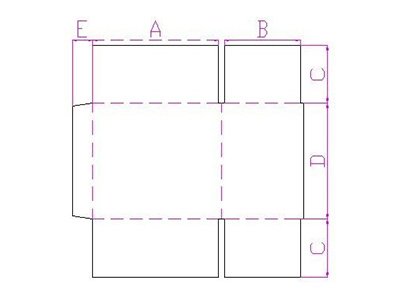

Model/Parameters TB-DT--3200（2500） Max paper size (A+B)X2(mm) 2500+2500=5000 Min paper size (A+B)X2(mm) 1060 The biggest carton length(A)(mm) 2850 The smallest carton length(A)(mm) 350 The biggest carton width(B)(mm) 1500 The smallest carton width(B)(mm) 180 The biggest paper height(C+D+C)(mm) 2500 The smallest paper height(C+D+C)(mm) 400 The biggest shake cover size(C)(mm) 560 The smallest shake cover size(C)(mm) 50 The biggest carton height(D)(mm) 2000 The smallest carton height(D)(mm) 150 Max width of tongue(mm) 45 Nail distance(mm) 30-120 Nail number 1-99 Nailing speed(Nails/Min) 500 Machine weight(KG) 3500 Product Display
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
