Product introduction
TB series automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section, counter and stacker section. Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable. Average speed is 200sheets/min. Energy conservation and high speed, saving labor cost.
Feeding section
● Vacuum suction feeding to feed warping paperboard easily，The paper feeding baffle is electrically adjustable.
● Quality electromagnetic clutch and brake adopted, feeding section controlled independent, operation easily.
● Scorer wheel electric adjustable, suit for 2-8mm thick paperboard.
● Second creasing instruction can impress again the paperboard which was not creased well.
Gluing and Folding section
● Simple structure and high reliability, glue quantity adjustable, cleaning easily
● The folding arm is electrically adjusted, which is convenient and fast
● Stainless steel glue wheel adopted, long life and saving glue cost
● High quality rubber belt adopted, automatic folding
● With paperboard rectify device and creasing rectify device
Counter and Stacker section
● Stacking and counting are simple and reliable.
● Digital control, operation easily and reliable. No-stop put in data and automatic counting.
● With rectification function.
● Counting and put out by pneumatic, stable and quickly.
Main Technical Parameters
Model QZD-2600 Max. cardboard 1200x2400mm Mini. Cardboard 300x600mm Power Required 11.5kw Main parts specification list NO Name Ragin 1 Touch screen WEILUNTANG, Taiwan 2 PLC DELTA 3 Switching power supply OMRON, Japan 4 Sensor SHILIN, Taiwan 5 Three-phase protector MITSUBISHI, Japan 6 Inverter DELTA 7 Button SCHNEIDER, France 8 AC contactor SHILIN, Taiwan 9 Intermediate relay SCHNEIDER, France 10 Limit switch CHINT, China 11 Breaker SHILIN, Taiwan 12 Electromagnetic clutch ZHEJIANG，China 13 Proximity switch OMRON, Japan 14 Terminal block CHINT, China 15 Server Driver MITSUBISHI, Japan MOTOR 16 Inverter motor 7.5kw--11kw DONGLI，China 17 Planetary reducer 1：30 TAIBANG，Taiwan 18 Head Servo Motor 4.4Kw Yaskawa， Japan 19 Feeding Servo Motor 4.4kw MITSUBISHI, Japan 20 Push of servo motor 0.75Kw MITSUBISHI, Japan 21 suction motor 7.5kw SHANGHAI Other 22 Bearing HRB,China 23 Belt SIGELLING, German 24 Cylinder AIRTAC Taiwan

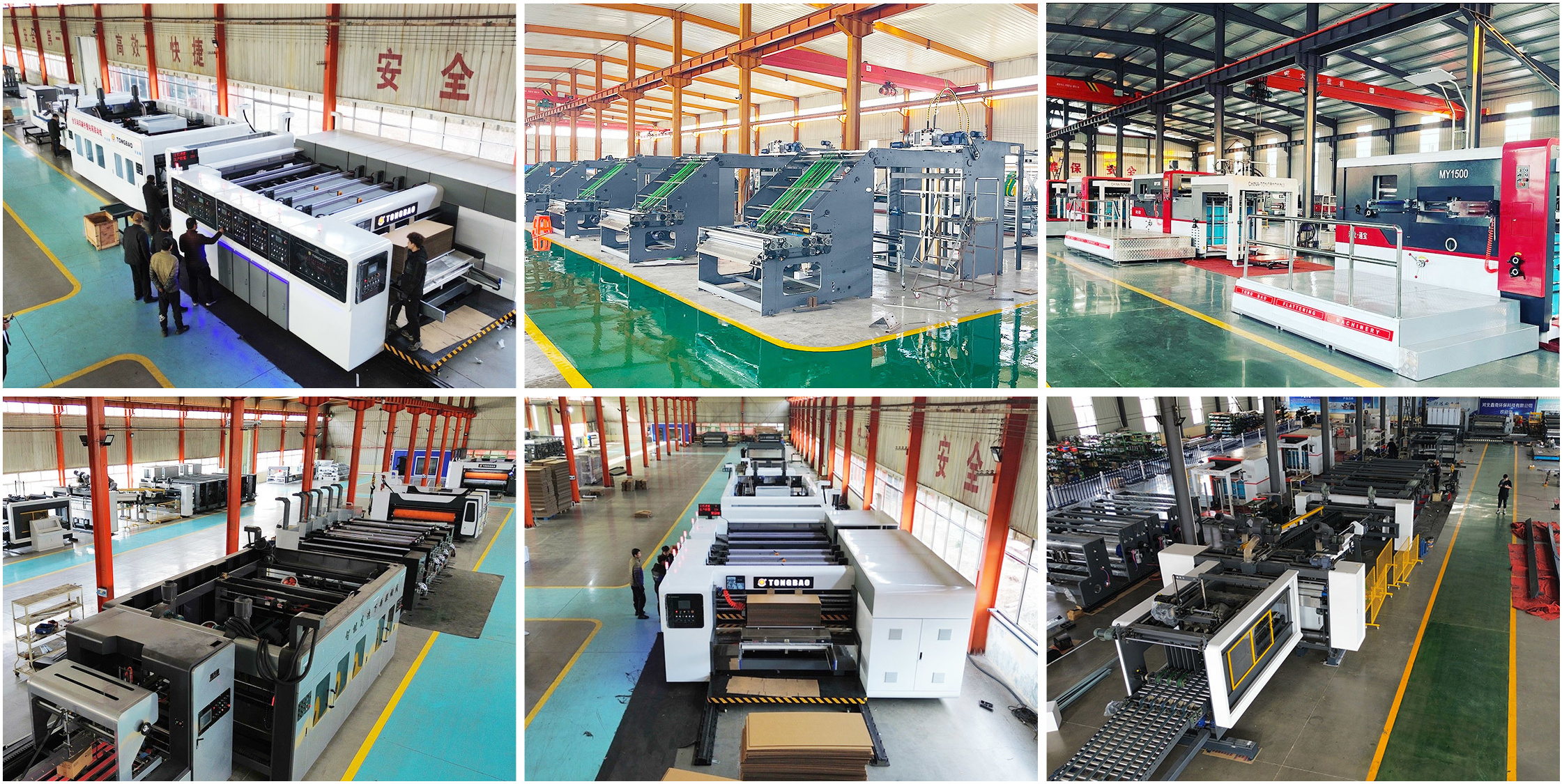

Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
TB-QZD Automatic Folder Gluer Machine
