- 产品描述
-
Function and characteristics
● Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m².
● The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
● Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
● The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
● Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.
● Automatic gluing, and the glue can be used circulatory, avoid glue waste.
● Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.
● Pressure rollers adopt unilateral adjustment, convenient and fast.
● Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc,. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash.
● The pressure conveyor adopt floating movable structure , total length 5m , equipped with 28 paper pressing rollers , make the cardboard uniform bearing strength in pressing process.
● Counter designs scientifically, easy recording the amount you have been worked.
● Small pressure table (optional) . length 2.5m , big pressure table length 5m.
Technological parameter
Model BZJ -1300 BZJ -1450 BZJ -1600 Max laminating size 1300mm×1250mm 1450mm×1250mm 1600mm×1250mm Min laminating size 360mm×360mm Economic speed 0-120sheets/min Laminating precision ±1 Size 13.5m×2m×2.4m Bottom paper thickness A/B/C/E flute, 3/4/5 layer , less than 12mm thickness Surface paper gram weight 150-600 g/m² Unit Introduction

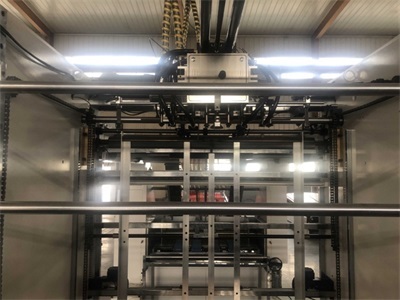

Feeder System
High precision high speed feeder , make the feeding smooth.

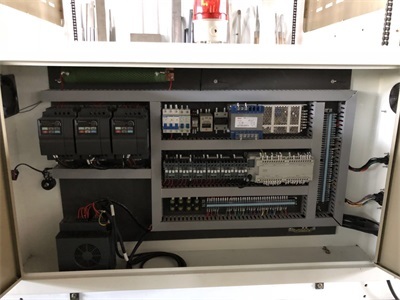

Strengthen type feeder device , the suction mouth angle can be adjustable , according to different kinds of surface paper.Electric system
Main electric appliances all adopt the imported famous brand.
PLC tracking technique , automatic fault detection.

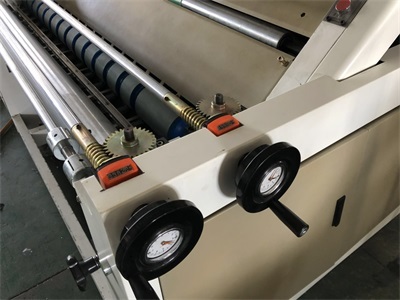

Pressure adjustment system
Adjust the pressure in single side , to ensure the pressure is same on both sides.
With pressure gauge display , can easily adjust when change the paper size.Pressure conveyor
Floating type pressure design , don’t need to adjust the pressure of flatbed.
Heightening design , good for the smooth work of thick corrugated cardboard.

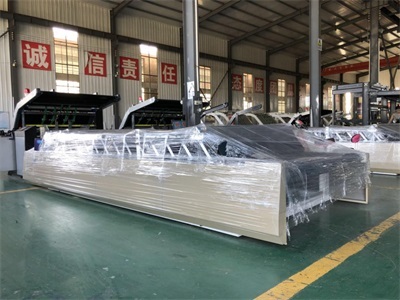

Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
