- 产品描述
-
Function and characteristics

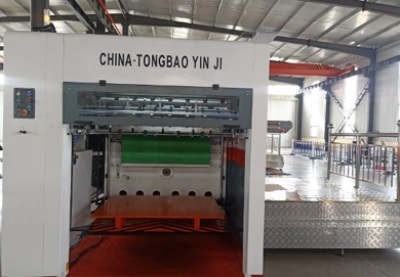

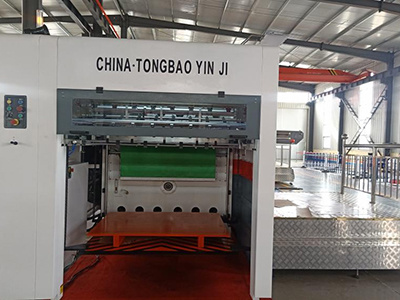

● Manual feeding can better adapt to warping paper and convenience to feeding, easy put paper in place.
● The paper feeding table can be automatically raised with the paper, easy to operate.

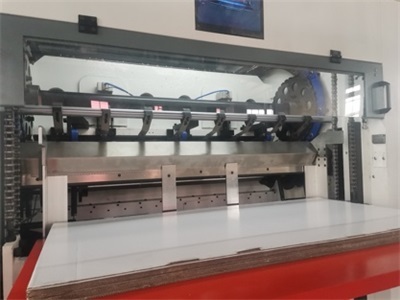

● The size of the grippers can be adjusted up and down with the thickness of the paper and bite paper firmly.
● This machine adopts high strength rigid aluminum alloy gripper row , which is small and stable in its gripper edge, effectively preventing the gripper row from vibrating. Adjustable device is added to the front and rear positioning of the gripper row.
● The main drive adopts pneumatic clutch, frequency modulation motor, smooth and rapid braking.
● Die-cutting steel plate with high hardness and high elasticity of high manganese alloy spring steel material, durable.
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-MY DESCRIPTION TB-MY Semi automatic die cutting and creasing machine Feeder
● High-quality steel for secure installation and fixation, and easy operation. Codes can be loaded onto the next die-cut paper during normal paper work, without the time wasted caused by coding paper links.
● The paper feeding table can automatically rise with the paper, making it easy to operate.
Have opposite photoelectric properties. It can automatically lift and manually adjust the lifting distance. It can also adjust the photoelectric position according to whether the paper is bent to ensure that the front edge of the continuous paper is flush with the paper feed bezel.1 Unit

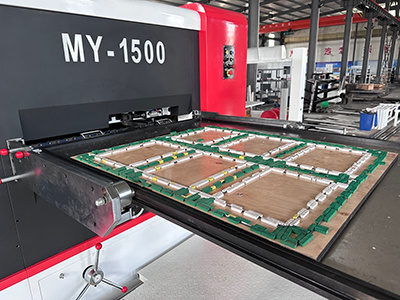

Die-cutting unit
● Maximum working die cutting pressure 300T
● The main wall panel is made of high-quality ductile iron, and the upper platform and movable platform are also made of high-quality ductile iron to ensure its ability to resist compression, deformation and vibration.
● The main machine is driven by a worm gear, with large torque, stable and reliable transmission, low noise and long service life.
● It is also equipped with a forced lubrication oil pump to realize the oil supply volume of each lubrication point. The mold-cutter version is easy to install, can be extracted freely, and the plate time is short
● Cam indexer and heavy duty pneumatic clutch with overload protection for stable, accurate and safe machine running.1 Unit

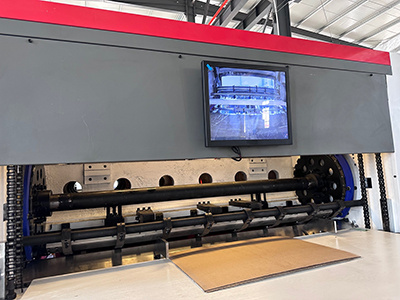

Stacker unit
● Automatic counting, dispersion board alarm. Automatic paper drop, automatic warning and paper drop is full
● According to the product size, adjust the left and right, front and back, and front of the cardboard to achieve the paper feeding level.
● Delivery control panel with icons for easy operation.
● Photoelectric device for safe operation and entrance.
● Auto lubrication device for all gears and chains.1 Unit

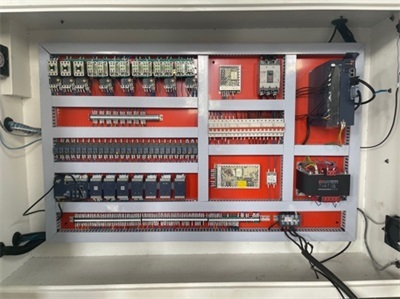

ELECTRICAL CONTROL SECTION
● Adopts electrical components of world famous brands for better performance and in time and local after-sale-service and maintenance.
● latest PLC technology to ensure safe and trouble free running1 Unit
Machine Main Parameter
Model TB-MY1300 TB-MY1520 TB-MY1650 Maximum paper size 1300x930mm 1520x1120mm 1650x1200mm Minimum paper size 400x450mm 400x450mm 500z550mm Maximum die cutting size 1280x910mm 1500x1100mm 1630x1180mm Design speed of machine 5500pcs/h Economic speed of machine 0-5500pcs/h Die-cutting paper type E,D.B,C,A and AB flute corrugated paper(1-8.5mm thickness) Die-cutting precision ≤±0.5mm Max. working pressure 350T 380T 400T Weight of machine About 14500KG About 16000KG About 19000KG Feeding part
● High quality steel is used to install and fix firmly, and the operation is simple. Can be in normal paper work, code to load the next die-cutting paper, do not cause a waste of time caused by the coding paper link.
● It is equipped with opposite photoelectricity. It can automatically lift and manually adjust the lifting distance. It can also adjust the photoelectric position according to whether the paper is bent or not, so as to ensure that the front edge of the continued paper is flush with the feed baffle.Feeding table
● The maximum paper feeding size is1300mm×930mm It is equipped with opposite photoelectricity. It can automatically lift and manually adjust the lifting distance.
● It can also adjust the photoelectric position according to whether the paper is bent or not, so as to ensure that the front edge of the continued paper is flush with the feed baffle.Die cutting part and Delivery system
● The main engine is driven by worm wheel and worm, with large torque, stable and reliable transmission, low noise and long service life.
● The main wall panel is made of high quality ductile iron, and the upper platform and the moving platform are also made of high quality ductile iron, so as to ensure its ability to resist compression, deformation and vibration.
● And equipped with a forced lubricating oil pump, the realization of each lubrication point oil quantity. Die - cutting knife version easy installation, extraction freely, short version time.(the bearings and electrical parts are selected from well-known foreign brands)Stacker part
● Automatic counting, scattered board alarm. Automatic drop of paper receiving, automatic warning and falling of paper receiving full.
● According to the size of the product, adjust the left and right and front and back of the paperboard to achieve the paper receiving level.
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
