Function and characteristics
● The machine has manual and automatic motion state models. When the paper quality is poor, the manual model can be used and it can be switched. When using a manual model, you can free up space and be suitable for operation.
● The paper feed unit of the machine is an independent system. It can be connected with die cutting machines of other manufacturers. The machine is equipped with a replacement part that can remove waste from the three edges and holes in the middle of the die-cut sheet.
● This machine has a powerful four-suction and four-feed paper feeder, which can adjust the suction angle through paper deformation and blow the paper separating device to facilitate paper separation.
● It has an overload protection mechanism to achieve accidental overload, and actively separates the die-cutting board frame, which can effectively prevent the die-cutting board from sagging and replacement.
● The main chain (Germany) adopts heavy-duty and advanced transmission chain, with minimal production error, high tensile strength and good wear resistance.
● The electrical control system is controlled by PLC and is equipped with various safety protection devices. When a fault occurs, it can give out sound and light alarm and automatically shut down, which truly guarantees the safety of man and machine.
● The timing and quantitative automatic oil supply system can ensure sufficient lubrication for other moving parts of the machine and long replacement.
SUPPLIER TONGBAO CARTON MACHINERY PRODUCTION STANDARDS EU CE certicification standards MODEL TB-MY DESCRIPTION TB-MY Full automatic die cutting and creasing machine(Full Waste Stripping) Auto feeder
● Use high-quality steel to install and fix firmly, easy to operate.
● It is possible to install die-cut paper under the code paper during normal paper feed work. There is no need to waste time caused by the code paper link.
● The machine has manual and automatic motion state models. When the paper quality is poor, the manual model can be used and it is easy to switch.1 Unit

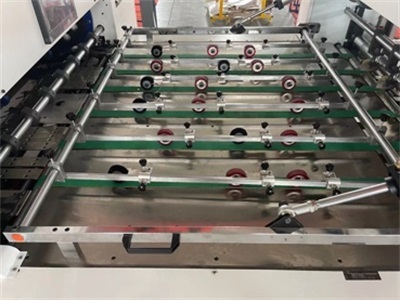

Feeding table
● It is equipped with opposite photoelectricity. It can automatically lift and manually adjust the lifting distance.
● It can also adjust the photoelectric position according to whether the paper is bent to ensure that the front edge of the continuous paper is flush with the paper feed bezel
● Automatic alignment and alignment before cardboard die-cutting
● Electrical mechanical double sheet detector
● Sheet hold-down device (guiding the sheets to the front lays)1 Unit

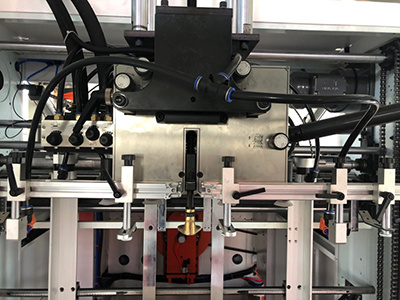

Die-cutting unit
● The main wall panel is made of high-quality ductile iron, and the upper platform and movable platform are also made of high-quality ductile iron to ensure its ability to resist compression, deformation and vibration.
● The main machine is driven by a worm gear, with large torque, stable and reliable transmission, low noise and long service life.
● It is also equipped with a forced lubrication oil pump to realize the oil supply volume of each lubrication point. The mold-cutter version is easy to install, can be extracted freely, and the plate time is short
● Cam indexer and heavy duty pneumatic clutch with overload protection for stable, accurate and safe machine running.1 Unit

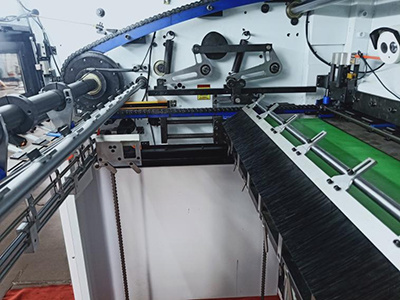

Waste stripping unit
● The complete waste cleaning system adopts a central positioning system with automatic clamping, making it easy and fast to copy; the chip removal rack adopts a motor-controlled lifting device; it can automatically remove waste materials on three, four sides and in the middle, thereby ensuring clean and efficient production.
● Complete set of stripping tools with upper and lower stripping pins
● Motorized upper frame suspending hoister
● Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready.
● Male/female stripping plate for different stripping jobs.
● Four side stripping function
● Centerline system for quick stripping die set up and job change1 Unit

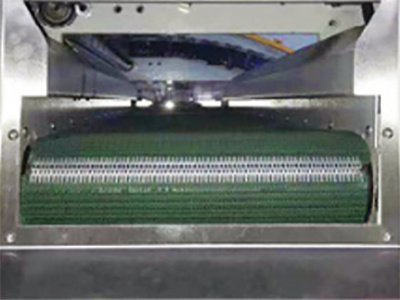

Stacker unit
● Automatic counting, dispersion board alarm. Automatic paper drop, automatic warning and paper drop is full
● According to the product size, adjust the left and right, front and back, and front of the cardboard to achieve the paper feeding level.
● Delivery control panel with icons for easy operation.
● Photoelectric device for safe operation and entrance.
● Auto lubrication device for all gears and chains.1 Unit

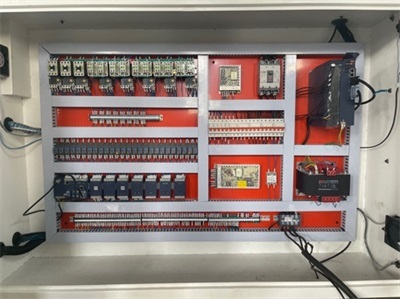

ELECTRICAL CONTROL SECTION
● Adopts electrical components of world famous brands for better performance and in time and local after-sale-service and maintenance.
● latest PLC technology to ensure safe and trouble free running1 Unit
Machine Main Parameter
Model TB-MY1300Q TB-MY1520Q TB-MY1650Q Maximum paper size 1300x930mm 1520x1120mm 1650x1200mm Minimum paper size 450x400mm 450x400mm 450x500mm Maximum die cutting size 1280x910mm 1500x1100mm 1630x1180mm Design speed of machine 6000pcs/h Economic speed of machine 0-5000pcs/h Min Gripper edge 8mm Min stripping edge 10mm Die-cutting paper type 200-2000gsm/m2(Cardboard)
≤7mm(Corrugated board)Die-cutting precision ≤±0.5mm Max feeding pile height 1400mm Max collecting pile height 1250mm Max. die cutting pressure 350T 380T 400T Feeding part
● Use high-quality steel to install and fix firmly, easy to operate.
● It is possible to install die-cut paper under the code paper during normal paper feed work. There is no need to waste time caused by the code paper link.
● The machine has manual and automatic motion state models. When the paper quality is poor, the manual model can be used and it is easy to switch.Feeding table
● It has the opposite optoelectronic properties. It can automatically lift and manually adjust the lifting distance.
● It can also adjust the photoelectric position according to whether the paper is bent to ensure that the leading edge of the continuous paper is flush with the paper feed baffle.Diecutting part and Delivery system
● The maximum die-cutting pressure of the host is 450N/cm2, which can ensure that the product with the largest width can be cut through and the indentation is full.
● The main engine adopts worm gear transmission, with large torque, stable and reliable transmission, low noise and long service life.
● The main wall panel is made of high-quality ductile iron, and the upper platform and movable platform are also made of high-quality ductile iron to ensure its resistance to compression, deformation and shock absorption.
● And equipped with a forced lubricating oil pump to achieve full oil at each lubrication point. The die cutter board is easy to install, easy to pull out, and the time to replace the board is short.
● The main chain (Germany) adopts a heavy-duty high-precision transmission chain with small yield error, high tensile strength and wear resistance.
● The overload protection mechanism can realize accidental overload, and the active separation of the die-cutting board frame can effectively prevent the die-cutting board from sagging and falling.Stripping part
● The full waste cleaning template adopts the central positioning system, automatic clamping, quick and convenient to the version; The waste removal frame adopts motor control lifting device; It can automatically remove the three and four sides and the intermediate waste, so as to ensure a clean and efficient production.
Stacker part
● Automatic counting and alarm for the scattered board. Automatic paper dropping, automatic warning and paper dropping is full.
● According to the product size, adjust the left and right, front and back of the cardboard to achieve the paper output levelElectric system
● The electronic control system is controlled by PLC and equipped with various safety protection devices. When a fault occurs, an audible and visual alarm will be issued, and the machine will automatically stop to ensure the safety of people and machines.
