Function and uses
The machine adopts automatic lead edge feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, high speed ,long service life and low cost
Main characteristics
● Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.
● The lead edge feeding has the advantages of good stability, fast working speed, low failure rate and high efficiency.
● The rubber feeding roller with resorte device, feeding accurately, stably, not destroy paperboard strength if the feeding space is very small.
● The left and right side baffles adopt electric control , the back baffles adopt electric adjustment, the front baffle space manual sync adjustment.
● Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber
● When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
● Adopt high-quality Germany Depair rubber pad.
● The roller is made of cast steel, with a wall thickness of 45mm,
● Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
● Electrically adjusted phase die-cutting position
● The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.
Technical parameter
Model 1200*24000 Max. Cardboard size 1200×2400mm Min. Cardboard size 350×600mm Total power 7.5kw Max. speed 140pcs/min Adoptable thickness of paperboard 2-10mm Vibration stacker with counter
Application and features

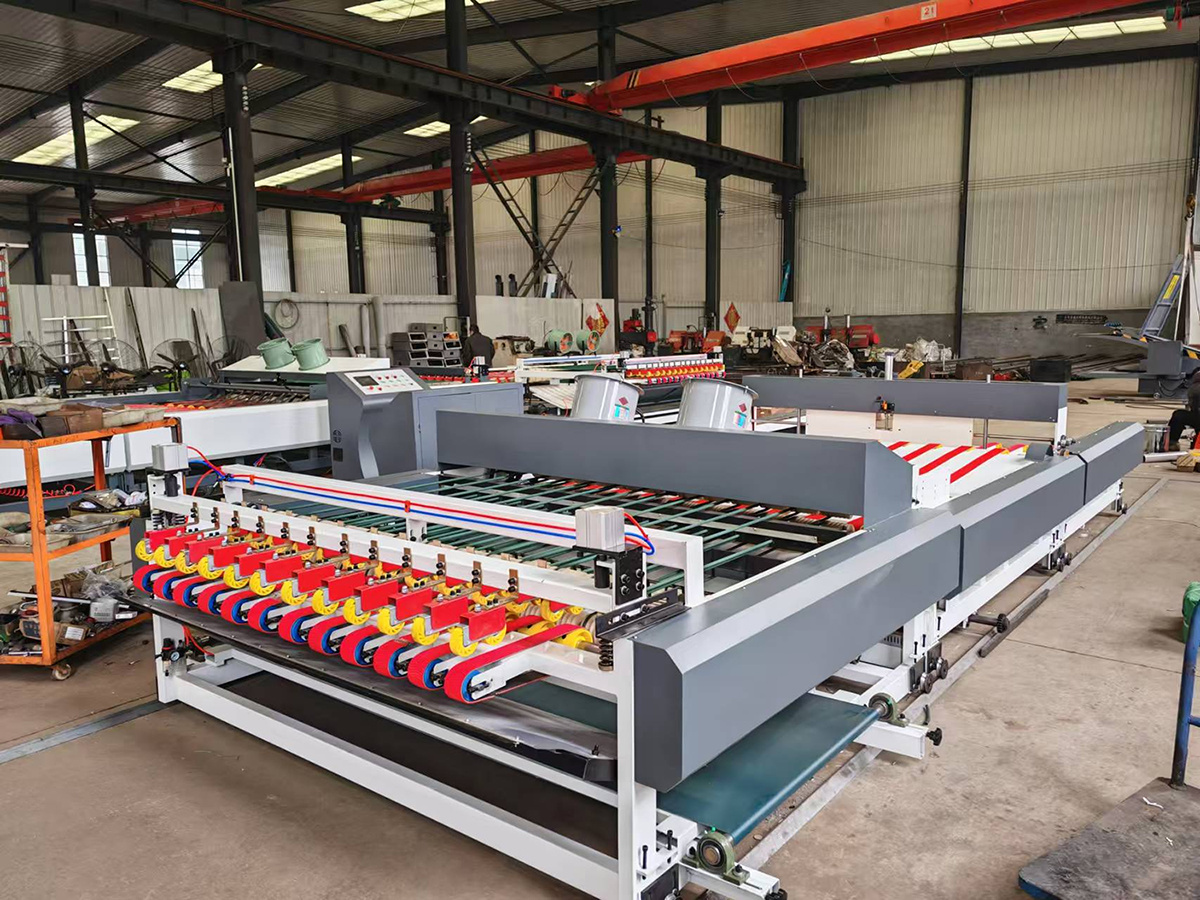

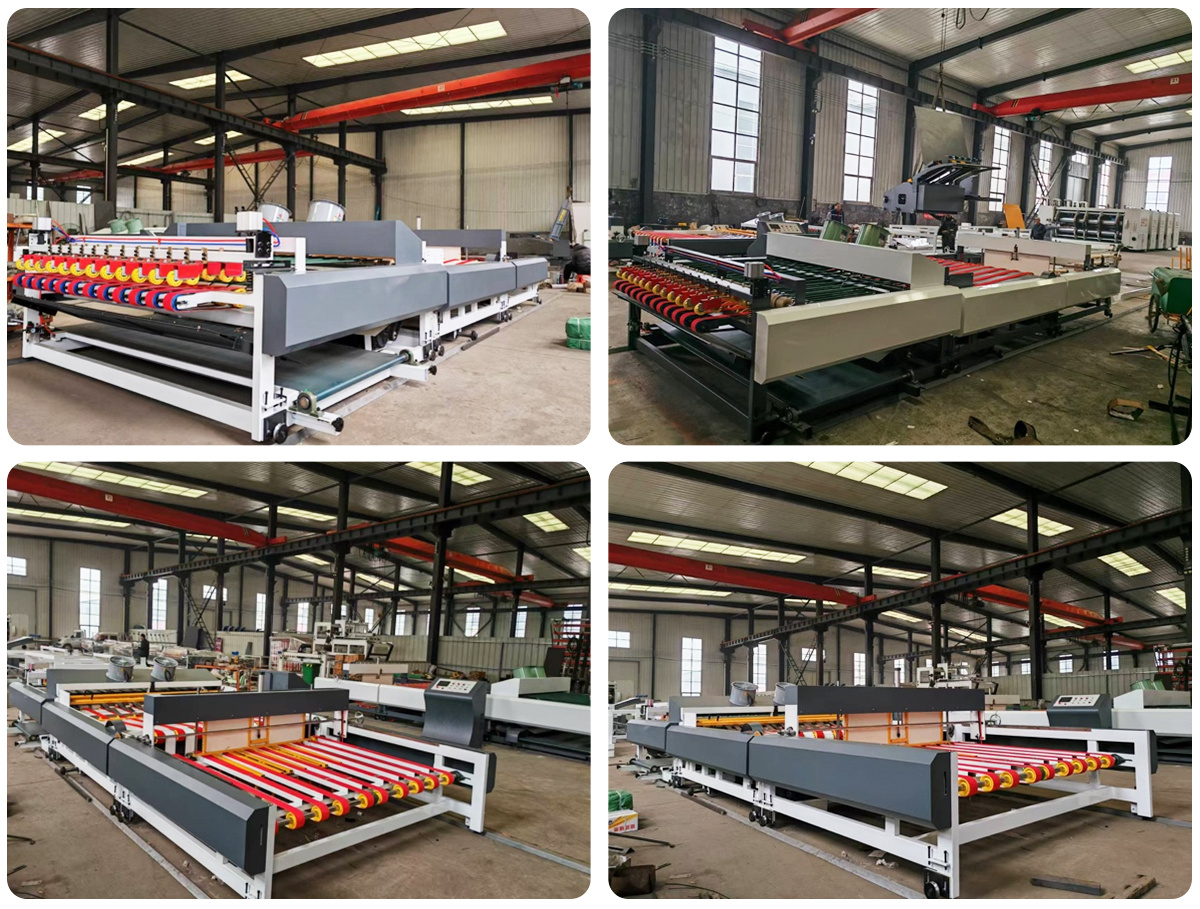

● Automatic stacking machine outputs neatly
● The main motor of the counting part is variable frequency speed regulation, the speed is adjustable, and the machine is stable and reliable
● The carton is transported by belt, stacked neatly, and the speed is 0-130m/min
● Counting and pushing are pneumatic, PLC electronic control, reliable, accurate and fast
● PLC controller and touch screen digital control are adopted, which is simple to operate, reliable in action, input data without stopping, and count automatically.
● Automatic flip board can directly transport the cardboard to the fully automatic gluer and nailer to reduce labor.
Paper receiving mechanism
● The corrugated belt is used to receive the paper to prevent the cardboard from slipping. An elastic polyurethane sun wheel is installed on it to help prevent the cardboard from tilting. During the transmission process, there is a circular oscillating belt through a square shaft stepless speed vibration belt, so that the excess paper edge falls to the waste paper conveying flat belt, and the excess paper scraps on the cardboard that have not been shaken are assisted by a strong fan and a brush to sweep them to the output flat belt after the cardboard passes.
● The height of the paper pressing wheel is adjustable, suitable for cardboard thickness of 2-8mm. It is linked with the stacking part, variable frequency speed regulation, and the paper feeding speed is 240m/min. The surface of the conveyor belt is wrinkled to ensure the smooth passage of the platform cardboard during the input process. The waste cleaning vibration shaft has four shaking points to accelerate the shaking frequency and improve the shaking effect. The shaking belt adopts a cylindrical high-elastic belt with good elasticity and does not damage the cardboard. The belt shaft adopts a linear optical axis and is equipped with countless nylon belt grooves, which is convenient for increasing or decreasing the number of belts according to the actual cardboard size, ensuring the smooth passage of special-shaped cartons and not causing damage to the cardboard. A brush device is provided at the end of the waste cleaning part to prevent waste paper from returning to the cardboard surface, achieving the waste cleaning effect. The lower end of the waste cleaning part is equipped with an inclined waste paper reverse feeding plate and a belt-type waste paper export device, which is convenient for centralized output and collection of waste paper, saving labor and reducing work intensity
Counting stacking output mechanism
● Automatic counting, stacking, and output functions, the main motor frequency conversion speed regulation, adjustable speed, stable and reliable startup. Cartons are transported by belts, and paper feeding is assisted by elastic dragon boats. Electronic counting makes stacking neat and fast. Mechanical lifting and straightening of cardboards are used, with deviation correction function, neat and small deviation. Counting and pneumatic descending discharge function, PLC electric control output, reliable, accurate and fast action. PLC programming controller and color human-machine touch interface control, simple operation, reliable action, non-stop input counting data, automatic counting and output of cardboard.
● The counting and stacking mechanism automatically counts the finished cardboard, neatly stacked, and output with accurate code. The quantity can be adjusted without stopping the machine, and the number of cardboard stacking can be adjusted at any time according to needs.
