- 产品描述
-
Function and Characteristics
● International famous brand electric parts and computer software was used in the whole machine(CHINT,DELTA).top-quality and steady; Computer order storage and adjustment (Beijing kunlun MCGS color touch-screen),faster order update and convenient operation(It can storage the 999 orders in the computer).
● Complete machine baffle and important parts used the temper for decrease the metal internal force; And that parts was made by high precision process center and grinded by digit-controlled grinder.
● All the transmission axle and roller are made by the high-quality steel,temper,and dynamic balance;plated with rigid chrome and grinded surface.
● All the transmission gear was used the 20 CrMnTi alloy steel,temper,and that parts was made by rubbing,6 grade precision,it still maintains the high topping precision.
● The transmission unit(connected with the axle and gear),which adopts the hand-free connecting ring to eliminate the interval,suitable for long-term high-speed running.
● All the transmission bearings were adopts strengthen model bearing,setting the dustproof windtight parts and the oiling,handy to maintenance,suitable for long-term to used.
● The whole machine undergoes the spray lubrication.
● The whole machine adjust presetting function, feeding, printing, slotting, die-cutting, automatic zero setting ,memory automatic reposition.
● The whole machine working interval adjustment was adopted free spanner,which is fast to adjustment,and the electromagnetism brake system with the worm wheel and worm setting,fast and convenient to adjustment.
● The mainframe was controlled by the frequency conversion(Brand：DELTA),start-up,running more smoothly.
● The whole machine adopts computer touch screen phase adjustment。Each unit also can adopt numerical control adjustment.
Main technical parameter
Model TB-C1224 TB-C1426 Wall thickness 40mm 40mm Max. Speed 120Pcs/min 120Pcs/min Max Printing area 1200x2200mm 1450X2500mm Max. Paperboard Size 1200x2400mm 1450x2600mm Min. Paperboard Size 400x600mm 430x700mm Printing Precision ≤±0.5(four colors) ≤±0.5(four colors) Lead edge feeding unit
Sun feeding unit
● The feeding unit adopt sun feeding systerm from USA. Frequency converser control the speed of feeding .
● Using variable frequency air volume adjustment，to make sure the smooth and accurate. of the paper feeding .
● Left and right baffies , Electric orientation , steady moving and accuracy .
● The cluth alarm，double pneumatic locking , safety and reliable .
● The upper paper feeding roller(Φ136mm)is the seamless steel tube , packed with Wear-resisting rubber , Ginning and hard chromium plating, Balance correction . Diameter of the roller is Ф136mm
● The down paper feeding roller(Ф136mm) is the seamless steel tube , ginning and hard chromium plating ,balance correction .
● The space between the two paper feeding roller is adjusted by the scale and worm-wheel adjusting , adjustment scope : 0-12 mm, adopt Slipper structure, the transmission gear will kept on the correct meshing during adjusting .
● The full computer adjustment .
● The phase of paper feeding unit，printing unit ,slotting unit, die-cutting unit adopts PLC Phasing , Human-machine interface adjustment .
● In this method , we can save adjustment time , and will be less pieces to adjust the right position , reduce the waste of paperboard .
● Can store orders, making the order-changing fast and convenient.
● The mainframe is controlled by the frequency conversion, with steady start-up and running ,saving about 30% of the power.
● Infrared photoelectricity counter presets the order processing quantity.
● Equipped with high-quality brush, and equipped with vacuum devices, can be a lot of cardboard printing surface to remove impurities, improve print quality.Printing unit
Printing roller
● Steel material, surface grinding and hard chrome plating
● Balance correction, stable operation
● Rachit fixed plate axis.（choose to install）
● Full plating slot is suitable for 10 mm plate .
● Loading and unloading the printing plate, pedal switch control the forward and backward.
The printing pressure roller
● The surface of the steel roller is grinding and hard chrome plating. Diameter is 168mm
● Balance correction, steady operation
● The gap between the printing pressure roller and the printing roller,the scal shows, adjusted by hand,the scope is 0-12mm. Adopt crosshead device, the transmitting gear will keep meshing while adjusting
Metal anilox roller（Origin: HAILI)
● The high quality anilox roller adopts domestic famous manufacturers,250/280/280/250 mesh
● Surface adopts the advanced hard chrome plating, hard, slipper, and wearproof,.diameter 216mm.
● Pneumatic lifting the anilox roller matched with the paper feeding roller to prevent double inking and the dry of ink while stopping the machine.
The rubber roller(80% natural rubber and goes through high-temperature treatment Origin: HEBEI JIZHOU)
● Without gap steel wrapped with wearproof rubber, balance correction. diameter 208mm.
● The middle and high of the rubber roller grinding, good transferring ink effect.
● The rubber roller equiped with overload device, can pre-long the using life.
Upper and lower paper-feeding roller
● The upper roller: equipment with left and right adjustable wheel, hard chrome plating.
● Diameter:136mm
● The lower roller: without gap steel surface grinding, hard chrome plating. diameter 136mm.
● Scale shows the space between the upper and lower paper feeding roller, worn-wheel adjusting, the scope is 0-12mm, adopts crosshead connection, the gears keeps meshing while adjusting.
Phasing adjustable structure
● Differential action planetary gear
● The printing phasing adopts PLC and electrical digital 360 degree adjustment ( no matter the machine is working or stopping).Phase motor USES worm gear and worm self-locking type motor power 0.37KW
● For the horizontal position, the scale type hand wheel adjusting.
Inking circulating
● It adopts pneumatic diagram pump for inking, stable and easy to operate and maintain.
● Automatic distributing the ink device, without stopping the ink while machine stops, can prevent the ink going dry. Distributing motor adopts cycloid reducer motor power 1.1 KW
● The ink cup prevent the inking splashing.
● Steel ink fountain, automatic inking and circulating cleaning.Die-cutting Unit
● Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die-cut, this can lighten machine load and increase rubber roller and die knife life.
● Matching with feeding system, it with auto up and down device, the mould roller will up when feeding paper, the mould roller will down when stop feeding paper. To make sure every paper die-cut correctly.
● The mechancial transmission rubber roller move 40mm in left and right side. It also with wear and tear regular could increase the life of rubber roller
● Die-cut phase adopt phase device and electric digital 360 degree adjustment
● Machine with rubber amend device, the rubber roller can be used after many times amend
● Die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved effciency.Additional Information
Transmission gears
● The transmission gear is made by 20Cr high-quality carbon structural steel, though transfer quality, high-frequency quench. Through milling gear.
● Machine work smoothly, low noise, hardness can reach HRC50-55, Long-life using, Little.
● damage and can keep long-term printing precision.
● The phasing gear adopt 20Cr alloy steel, though transfer quality, high frequency, gear grinding, hardness is HRC50-55.
● USES the HRB Harbin precision bearing.Lubrication system
● Every unit adopts oiling by gear pump,to realize lubrication by circulating spray type.
● Every fuel tank has storage balancer machine, and can make all the oil at the same level.、
Factory
Cangzhou Tongbao Carton Machinery Co., Ltd. is a large private enterprise in Cangzhou City specializing in the research and development and production of carton machinery. It has a registered capital of US$500, a plant area of 18,000 square meters, 126 industrial workers and 30 professional technical R&D personnel.
The product structure of the enterprise includes the production and manufacture of all types of carton packaging and printing equipment. Among them, special models such as vacuum adsorption high-speed high-definition automatic water-based printing slotting die-cutting glue box packaging production line, automatic high-speed four-color printing die-cutting machine, automatic flat die-cutting and creasing machine occupy a large share.v
Company Eexhibition
Qualification Certificate
FAQs
★ Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
★ How can we visit your factory?
The company has a superior geographical location, located on the east side of National Highway 105 in the south of the county seat, close to the Beijing-Shanghai Railway and the Beijing-Hangzhou Grand Canal, and the Beijing-Shanghai Expressway and railway to the east, with convenient transportation.
★ What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
★ The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
★ How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.

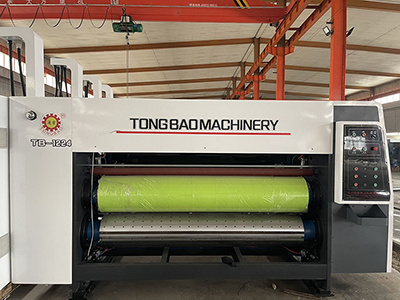

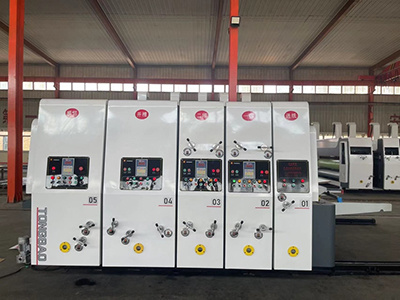

TB-C Automatic Printer Die Cutter With Slotter Attachment Machine

Share to
- 产品描述
-
Function and Characteristics
● International famous brand electric parts and computer software was used in the whole machine(CHINT,DELTA).top-quality and steady; Computer order storage and adjustment (Beijing kunlun MCGS color touch-screen),faster order update and convenient operation(It can storage the 999 orders in the computer).
● Complete machine baffle and important parts used the temper for decrease the metal internal force; And that parts was made by high precision process center and grinded by digit-controlled grinder.
● All the transmission axle and roller are made by the high-quality steel,temper,and dynamic balance;plated with rigid chrome and grinded surface.
● All the transmission gear was used the 20 CrMnTi alloy steel,temper,and that parts was made by rubbing,6 grade precision,it still maintains the high topping precision.
● The transmission unit(connected with the axle and gear),which adopts the hand-free connecting ring to eliminate the interval,suitable for long-term high-speed running.
● All the transmission bearings were adopts strengthen model bearing,setting the dustproof windtight parts and the oiling,handy to maintenance,suitable for long-term to used.
● The whole machine undergoes the spray lubrication.
● The whole machine adjust presetting function, feeding, printing, slotting, die-cutting, automatic zero setting ,memory automatic reposition.
● The whole machine working interval adjustment was adopted free spanner,which is fast to adjustment,and the electromagnetism brake system with the worm wheel and worm setting,fast and convenient to adjustment.
● The mainframe was controlled by the frequency conversion(Brand：DELTA),start-up,running more smoothly.
● The whole machine adopts computer touch screen phase adjustment。Each unit also can adopt numerical control adjustment.
Main technical parameter
Model TB-C1224 TB-C1426 Wall thickness 40mm 40mm Max. Speed 120Pcs/min 120Pcs/min Max Printing area 1200x2200mm 1450X2500mm Max. Paperboard Size 1200x2400mm 1450x2600mm Min. Paperboard Size 400x600mm 430x700mm Printing Precision ≤±0.5(four colors) ≤±0.5(four colors) Lead edge feeding unit
Sun feeding unit
● The feeding unit adopt sun feeding systerm from USA. Frequency converser control the speed of feeding .
● Using variable frequency air volume adjustment，to make sure the smooth and accurate. of the paper feeding .
● Left and right baffies , Electric orientation , steady moving and accuracy .
● The cluth alarm，double pneumatic locking , safety and reliable .
● The upper paper feeding roller(Φ136mm)is the seamless steel tube , packed with Wear-resisting rubber , Ginning and hard chromium plating, Balance correction . Diameter of the roller is Ф136mm
● The down paper feeding roller(Ф136mm) is the seamless steel tube , ginning and hard chromium plating ,balance correction .
● The space between the two paper feeding roller is adjusted by the scale and worm-wheel adjusting , adjustment scope : 0-12 mm, adopt Slipper structure, the transmission gear will kept on the correct meshing during adjusting .
● The full computer adjustment .
● The phase of paper feeding unit，printing unit ,slotting unit, die-cutting unit adopts PLC Phasing , Human-machine interface adjustment .
● In this method , we can save adjustment time , and will be less pieces to adjust the right position , reduce the waste of paperboard .
● Can store orders, making the order-changing fast and convenient.
● The mainframe is controlled by the frequency conversion, with steady start-up and running ,saving about 30% of the power.
● Infrared photoelectricity counter presets the order processing quantity.
● Equipped with high-quality brush, and equipped with vacuum devices, can be a lot of cardboard printing surface to remove impurities, improve print quality.Printing unit
Printing roller
● Steel material, surface grinding and hard chrome plating
● Balance correction, stable operation
● Rachit fixed plate axis.（choose to install）
● Full plating slot is suitable for 10 mm plate .
● Loading and unloading the printing plate, pedal switch control the forward and backward.
The printing pressure roller
● The surface of the steel roller is grinding and hard chrome plating. Diameter is 168mm
● Balance correction, steady operation
● The gap between the printing pressure roller and the printing roller,the scal shows, adjusted by hand,the scope is 0-12mm. Adopt crosshead device, the transmitting gear will keep meshing while adjusting
Metal anilox roller（Origin: HAILI)
● The high quality anilox roller adopts domestic famous manufacturers,250/280/280/250 mesh
● Surface adopts the advanced hard chrome plating, hard, slipper, and wearproof,.diameter 216mm.
● Pneumatic lifting the anilox roller matched with the paper feeding roller to prevent double inking and the dry of ink while stopping the machine.
The rubber roller(80% natural rubber and goes through high-temperature treatment Origin: HEBEI JIZHOU)
● Without gap steel wrapped with wearproof rubber, balance correction. diameter 208mm.
● The middle and high of the rubber roller grinding, good transferring ink effect.
● The rubber roller equiped with overload device, can pre-long the using life.
Upper and lower paper-feeding roller
● The upper roller: equipment with left and right adjustable wheel, hard chrome plating.
● Diameter:136mm
● The lower roller: without gap steel surface grinding, hard chrome plating. diameter 136mm.
● Scale shows the space between the upper and lower paper feeding roller, worn-wheel adjusting, the scope is 0-12mm, adopts crosshead connection, the gears keeps meshing while adjusting.
Phasing adjustable structure
● Differential action planetary gear
● The printing phasing adopts PLC and electrical digital 360 degree adjustment ( no matter the machine is working or stopping).Phase motor USES worm gear and worm self-locking type motor power 0.37KW
● For the horizontal position, the scale type hand wheel adjusting.
Inking circulating
● It adopts pneumatic diagram pump for inking, stable and easy to operate and maintain.
● Automatic distributing the ink device, without stopping the ink while machine stops, can prevent the ink going dry. Distributing motor adopts cycloid reducer motor power 1.1 KW
● The ink cup prevent the inking splashing.
● Steel ink fountain, automatic inking and circulating cleaning.Die-cutting Unit
● Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die-cut, this can lighten machine load and increase rubber roller and die knife life.
● Matching with feeding system, it with auto up and down device, the mould roller will up when feeding paper, the mould roller will down when stop feeding paper. To make sure every paper die-cut correctly.
● The mechancial transmission rubber roller move 40mm in left and right side. It also with wear and tear regular could increase the life of rubber roller
● Die-cut phase adopt phase device and electric digital 360 degree adjustment
● Machine with rubber amend device, the rubber roller can be used after many times amend
● Die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved effciency.Additional Information
Transmission gears
● The transmission gear is made by 20Cr high-quality carbon structural steel, though transfer quality, high-frequency quench. Through milling gear.
● Machine work smoothly, low noise, hardness can reach HRC50-55, Long-life using, Little.
● damage and can keep long-term printing precision.
● The phasing gear adopt 20Cr alloy steel, though transfer quality, high frequency, gear grinding, hardness is HRC50-55.
● USES the HRB Harbin precision bearing.Lubrication system
● Every unit adopts oiling by gear pump,to realize lubrication by circulating spray type.
● Every fuel tank has storage balancer machine, and can make all the oil at the same level.、
